DTC B242F: Open in B Power Line [07/2019 - 10/2019]: Procedure

  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Body Electrical > AFS (Sub) > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  3

  3. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Body Electrical > AFS (Sub) > Trouble Codes

      OK

      DTC B242F is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from headlight ECU sub-assembly LH) B
      NG (DTC output from headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    B

    See step  6

    Result:

    C

    See step  13

  4. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / HL AutoLeveling or HL AutoLeveling (Sub) / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > HL AutoLeveling > Clear DTCs

      Body Electrical > HL AutoLeveling (Sub) > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / HL AutoLeveling or HL AutoLeveling (Sub) / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > HL AutoLeveling > Trouble Codes

      Body Electrical > HL AutoLeveling (Sub) > Trouble Codes

      OK

      DTC B242F is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from headlight ECU sub-assembly LH) B
      NG (DTC output from headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    C

    See step  13

    Result:

    B

    See step  6

  6. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH (ECUB TERMINAL VOLTAGE)
    1. For TMMK Made Before Sep. 2019 Production
      GTY821690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly LH)
      1. Disconnect the A11 headlight ECU sub-assembly LH connector.
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        A11-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V
    2. For TMC Made or TMMK Made From Sep. 2019 Production
      GTY961326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly LH)
      1. Disconnect the A78 headlight ECU sub-assembly LH connector.
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        A78-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
    1. For TMMK Made Before Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        A11-12 (GND) - Body ground Always Below 1 Ω
    2. For TMC Made or TMMK Made From Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        A78-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. INSPECT H-LP LH RELAY
    1. Inspect the H-LP LH relay.

      Refer to ON-VEHICLE INSPECTION [06/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE H-LP LH RELAY

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (H-LP LH RELAY - HEADLIGHT ECU SUB-ASSEMBLY LH)
    1. For TMMK Made Before Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        3 (H-LP LH relay) - A11-13 (ECUB) Always Below 1 Ω
        3 (H-LP LH relay) or A11-13 (ECUB) - Body ground Always 10 kΩ or higher
    2. For TMC Made or TMMK Made From Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        3 (H-LP LH relay) - A78-13 (ECUB) Always Below 1 Ω
        3 (H-LP LH relay) or A78-13 (ECUB) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (POWER SOURCE - H-LP LH RELAY)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      2 (H-LP LH relay) - Body ground Always 11 to 14 V
      5 (H-LP LH relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (H-LP LH RELAY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 3F instrument panel junction block assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (H-LP LH relay) - 3F-31 Always Below 1 Ω
      1 (H-LP LH relay) or 3F-31 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  12

  12. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

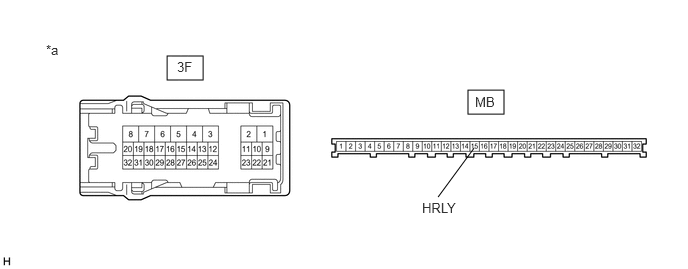

    GTY834889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly)    		 - -
    1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [06/2018 - 08/2021]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3F-31 - MB-15 (HRLY) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  13. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH (ECUB TERMINAL VOLTAGE)
    1. For TMMK Made Before Sep. 2019 Production
      GTY821689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly RH)
      1. Disconnect the A12 headlight ECU sub-assembly RH connector.
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        A12-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V
    2. For TMC Made or TMMK Made From Sep. 2019 Production

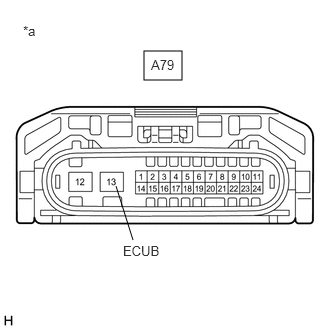

      GTY961339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Headlight ECU Sub-assembly RH)
      1. Disconnect the A79 headlight ECU sub-assembly RH connector.
      2. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        A79-13 (ECUB) - Body ground Engine switch on (IG) 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  14

  14. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH - BODY GROUND)
    1. For TMMK Made Before Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        A12-12 (GND) - Body ground Always Below 1 Ω
    2. For TMC Made or TMMK Made From Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        A79-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  15. INSPECT H-LP RH RELAY
    1. Inspect the H-LP RH relay.

      Refer to ON-VEHICLE INSPECTION [06/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE H-LP RH RELAY

    Result:

    OK

    See step  16

  16. CHECK HARNESS AND CONNECTOR (H-LP RH RELAY - HEADLIGHT ECU SUB-ASSEMBLY RH)
    1. For TMMK Made Before Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        5 (H-LP RH relay) - A12-13 (ECUB) Always Below 1 Ω
        5 (H-LP RH relay) or A12-13 (ECUB) - Body ground Always 10 kΩ or higher
    2. For TMC Made or TMMK Made From Sep. 2019 Production
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        5 (H-LP RH relay) - A79-13 (ECUB) Always Below 1 Ω
        5 (H-LP RH relay) or A79-13 (ECUB) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (POWER SOURCE - H-LP RH RELAY)
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      1 (H-LP RH relay) - Body ground Always 11 to 14 V
      3 (H-LP RH relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  18

  18. CHECK HARNESS AND CONNECTOR (H-LP RH RELAY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
    1. Disconnect the G37 main body ECU (multiplex network body ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      2 (H-LP RH relay) - G37-12 (HRY2) Always Below 1 Ω
      2 (H-LP RH relay) or G37-12 (HRY2) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
