SRS Warning Light does not Come ON [10/2018 - 07/2022]: Procedure

1. Measure the voltage of the auxiliary battery with the ignition switch off.

   Standard Voltage

   11 to 14 V (IG OFF)

   Result

   Result	Proceed to
   OK	A
   NG (for HV Model)	B
   NG (for Gasoline Model)	C

Result:

B

INSPECT CHARGING SYSTEM AND AUXILIARY BATTERY. Refer to  ON-VEHICLE INSPECTION [10/2018 - ]

Result:

C

INSPECT CHARGING SYSTEM AND AUXILIARY BATTERY. Refer to  ON-VEHICLE INSPECTION [10/2018 - 07/2022]

Result:

A

See step  2

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) auxiliary battery terminal.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

3. Check that the connector is properly connected to the combination meter assembly.

   OK

   The connector is properly connected.

   HINT:

   If the connector is not properly connected, reconnect the connector and proceed to the next inspection.

4. Disconnect the connector from the combination meter assembly.
5. Check that the terminals of the connector are not deformed or damaged.

   OK

   The terminals are not deformed or damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CONNECTOR

Result:

OK

See step  3

1. Connect the cable to the negative (-) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

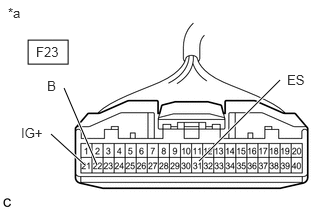

   *a	Front view of wire harness connector (to Combination Meter Assembly)

2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   F23-21 (IG+) - Body ground	Ignition switch ON	11 to 14 V
   F23-22 (B) - Body ground	Always	11 to 14 V

4. Turn the ignition switch off.
5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F23-31 (ES) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE WIRE HARNESS

Result:

OK

See step  4

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

2. Connect the connector to the combination meter assembly.
3. Disconnect the connector from the airbag ECU assembly.
4. Connect the cable to the negative (-) auxiliary battery terminal.
5. Turn the ignition switch to ON and check the SRS warning light condition.

   OK

   After the primary check period, the SRS warning light turns off for approximately 10 seconds and then turns back on.

   HINT:

   The primary check period is approximately 6 seconds after the ignition switch is turned to ON.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]

Result:

NG

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]
