Home >> Lexus >> 2021 >> UX 250h Luxury >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System - Diagnostic Codes (3 Of 3) & Symptom Tests) >> Airbag System >> SRS Warning Light Remains ON [10/2018 - 07/2022] >> Wiring Diagram

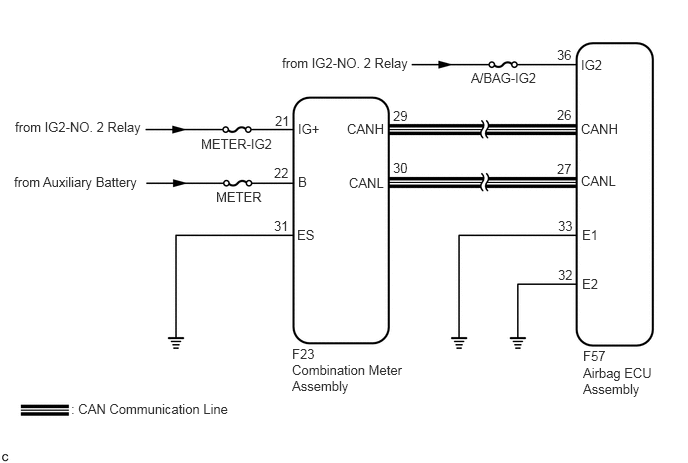

SRS Warning Light Remains ON [10/2018 - 07/2022]: Wiring Diagram

GTY792636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
