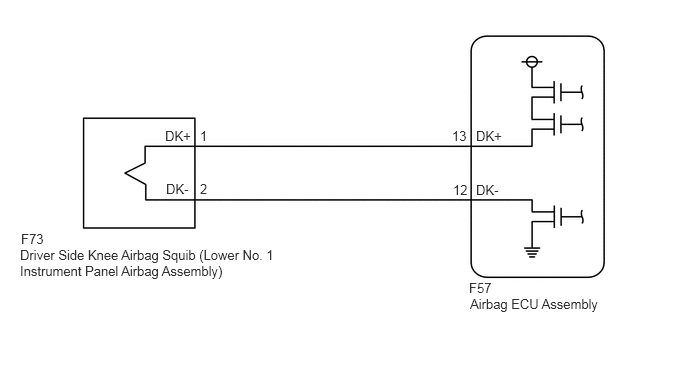

DTC B1860: Short in Knee Airbag (D Side) Squib Circuit; DTC B1861: Open in Knee Airbag (D Side) Squib Circuit; DTC B1862: Short in Knee Airbag (D Side) Squib Circuit (to Ground); DTC B1863: Short in Knee Airbag (D Side) Squib Circuit (to +B) [10/2018 - ]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
