DTC C060E-19: Left Electric Parking Brake Actuator Circuit Current Above Threshold [08/2021 - ]: Procedure

  1. INSPECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
    1. Turn the power switch off.
    2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

      OK

      The connector is securely connected.

    3. Disconnect the kN2 and k2 No. 2 parking brake wire assembly connectors.
    4. Check both the connector case and the terminals for deformation and corrosion.

      OK

      No deformation or corrosion.

    5. Measure the resistance according to the value(s) in the table below.
      GTY1086195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of No. 2 Parking Brake Wire Assembly *b (to wire harness connector)
      *c (to Parking Brake Actuator Assembly LH) - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      kN2-1 - k2-2 (+) Always Below 1 Ω
      kN2-1 or k2-2 (+) - Body ground and other terminals Always 10 kΩ or higher
      kN2-2 - k2-1 (-) Always Below 1 Ω
      kN2-2 or k2-1 (-) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY LH)
    1. Turn the power switch off.
    2. Make sure the No. 2 parking brake wire assembly is securely installed.
    3. Disconnect the A48 parking brake ECU (brake actuator assembly) connector.
    4. Disconnect the k2 parking brake actuator assembly LH connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A48-7 (MRL+) - k2-2 (+) Always Below 1 Ω
      A48-7 (MRL+) or k2-2 (+) - Body ground Always 10 kΩ or higher
      A48-8 (MRL-) - k2-1 (-) Always Below 1 Ω
      A48-8 (MRL-) or k2-1 (-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT PARKING BRAKE ACTUATOR ASSEMBLY LH

    Refer to INSPECTION [10/2018 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO +B
    1. Turn the power switch off.
    2. Make sure the No. 2 parking brake wire assembly is securely installed.
    3. Disconnect the k2 parking brake actuator assembly LH connector.
    4. Measure the voltage according to the value(s) in the table below.
      GTY1086798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of No. 2 Parking Brake Wire Assembly
      (to Parking Brake Actuator Assembly LH)

      Standard Voltage

      Tester Connection Condition Specified Condition
      k2-2 (+) - k2-1 (-) Electric parking brake not operating Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO +B
    1. Disconnect the kN2 No. 2 parking brake wire assembly connector.
    2. Measure the voltage according to the value(s) in the table below.

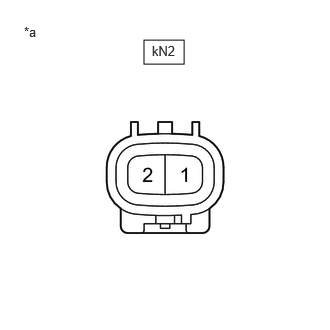

      GTY1086406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Parking Brake Wire Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      kN2-1 - kN2-2 Electric parking brake not operating Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY

    Result:

    NG

    See step  6

  6. CHECK FOR SHORT TO +B
    1. Disconnect the kN2 No. 2 parking brake wire assembly connector.
    2. Disconnect the A48 parking brake ECU (brake actuator assembly) connector.
    3. Measure the voltage according to the value(s) in the table below.

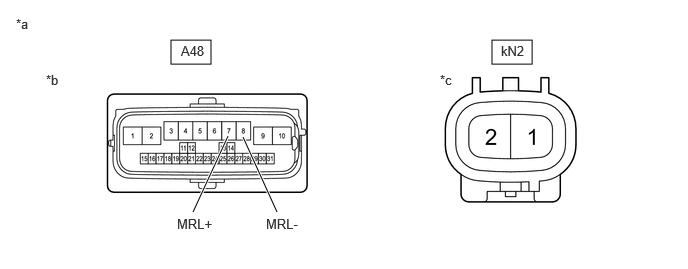

      GTY1086479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector *b (to Parking Brake ECU (Brake Actuator Assembly))
      *c (to No. 2 Parking Brake Wire Assembly) - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      kN2-1 or A48-7 (MRL+) - Body ground Always Below 1 V
      kN2-2 or A48-8 (MRL-) - Body ground Always Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY). Refer to  REMOVAL [10/2018 - 07/2022]  , or refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
