DTC C060B-12: Left Electric Parking Brake Actuator Control Circuit Short to Battery [08/2021 - ]: Procedure

1. Turn the power switch off.
2. Make sure the No. 2 parking brake wire assembly is securely installed.
3. Disconnect the k2 parking brake actuator assembly LH connector.
4. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

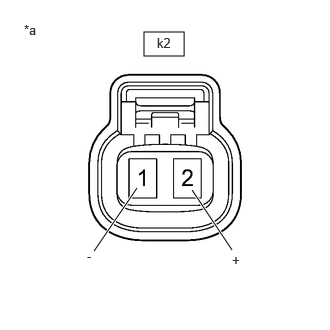

   *a	Front view of No. 2 Parking Brake Wire Assembly (to Parking Brake Actuator Assembly LH)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   k2-2 (+) - k2-1 (-)	Electric parking brake not operating	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

Result:

NG

See step  2

1. Disconnect the kN2 No. 2 parking brake wire assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

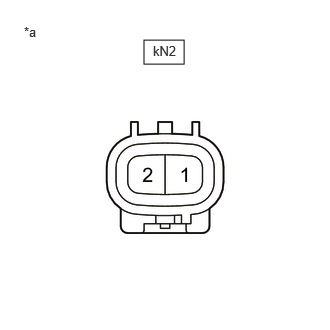

   *a	Front view of wire harness connector (to No. 2 Parking Brake Wire Assembly)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   kN2-1 - kN2-2	Electric parking brake not operating	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY

Result:

NG

See step  3

1. Disconnect the kN2 No. 2 parking brake wire assembly connector.
2. Disconnect the A48 parking brake ECU (brake actuator assembly) connector.
3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

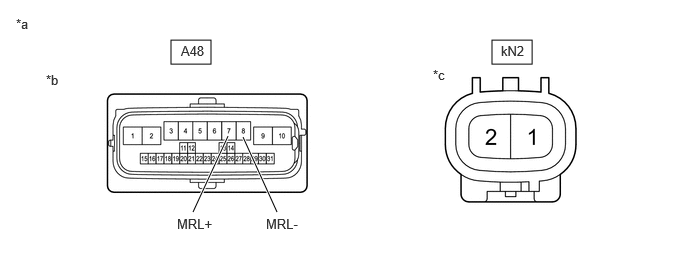

   *a	Front view of wire harness connector	*b	(to Parking Brake ECU (Brake Actuator Assembly))
   *c	(to No. 2 Parking Brake Wire Assembly)	-	-

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   kN2-1 or A48-7 (MRL+) - Body ground	Always	Below 1 V
   kN2-2 or A48-8 (MRL-) - Body ground	Always	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY). Refer to  REMOVAL [10/2018 - 07/2022]  , or refer to  REMOVAL [07/2022 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
