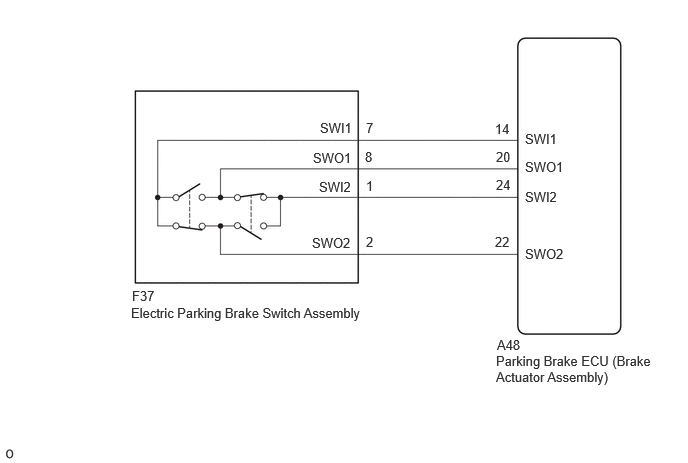

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [08/2021 - 07/2022]: Wiring Diagram

GTY1087084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
