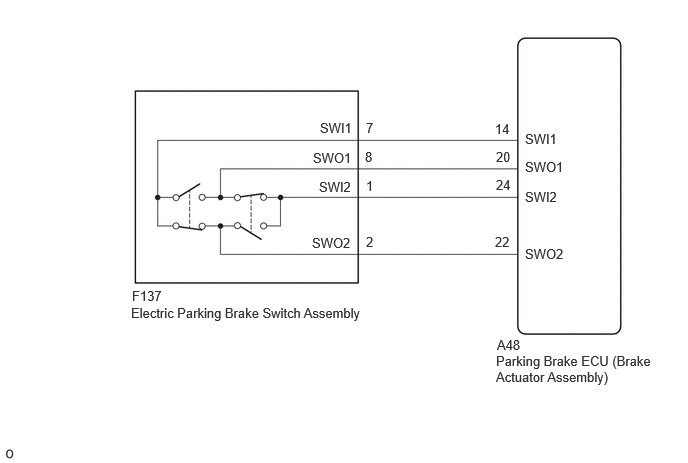

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [07/2022 - ]: Wiring Diagram

GTY1128868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
