Removal [08/2021 - ]: Procedure

  1. REMOVE DOOR PULL HANDLE

    See step  7 [08/2021 - 07/2022] See step  7 [07/2022 - ]

  2. REMOVE DOOR CONTROL SWITCH

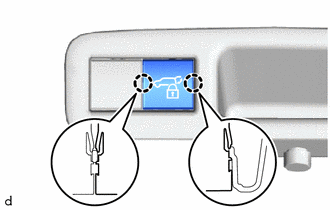

    1. Disengage the claws to remove the door control switch.
      GTY1085440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
