Removal [10/2018 - ]: Procedure

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    See step  12 [10/2018 - 08/2021] See step  12 [08/2021 - 07/2022] See step  12 [07/2022 - ]

  2. REMOVE POWER BACK DOOR UNIT ASSEMBLY SET

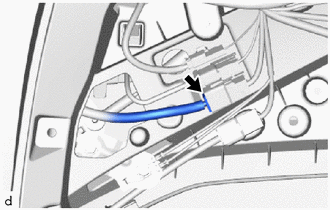

    1. Disconnect the connector.
      GTY835254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

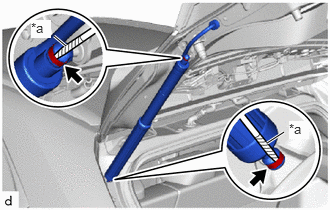

    2. Using a thin-bladed screwdriver with its tip wrapped in protective tape, disconnect the 2 stop rings along their grooves.
      GTY788495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective tape
    3. Disengage the 2 ball joints to remove the power back door unit assembly set.
      NOTE:

      Remove the power back door unit assembly set while supporting the back door by hand.

  3. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET

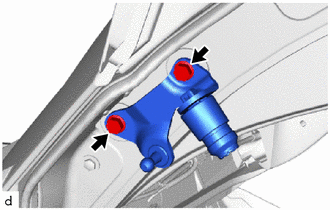

    1. Remove the 2 bolts and back door damper stay lower bracket with back door upper stopper cushion.
      GTY811556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws to remove the back door damper stay lower bracket.
      GTY812998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET

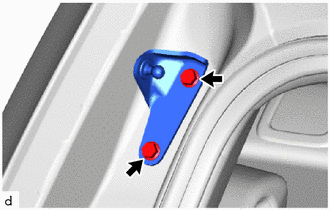

    1. Remove the 2 bolts and back door damper stay upper bracket.
      GTY812995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
