Components [10/2018 - ]

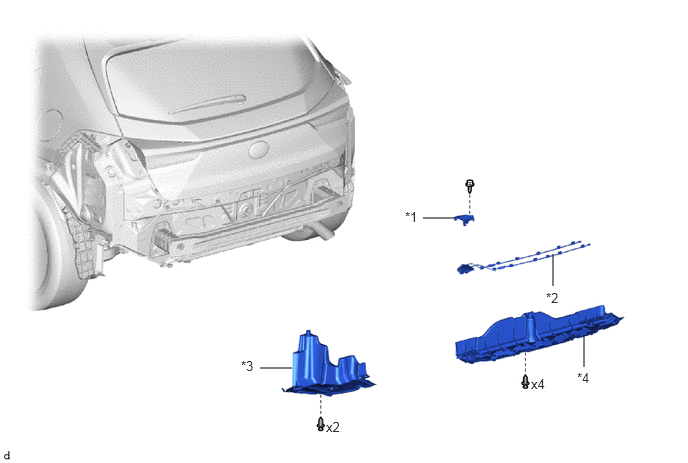

Fig 1: Kick Sensor Replacement Components
GTY779724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 KICK DOOR CONTROL BRACKET *2 KICK DOOR CONTROL SENSOR
*3 NO. 2 FLOOR UNDER COVER *4 REAR BODY FLOOR REAR COVER
