Components [08/2021 - 07/2022]
| *1 | TONNEAU COVER ASSEMBLY | - | - |

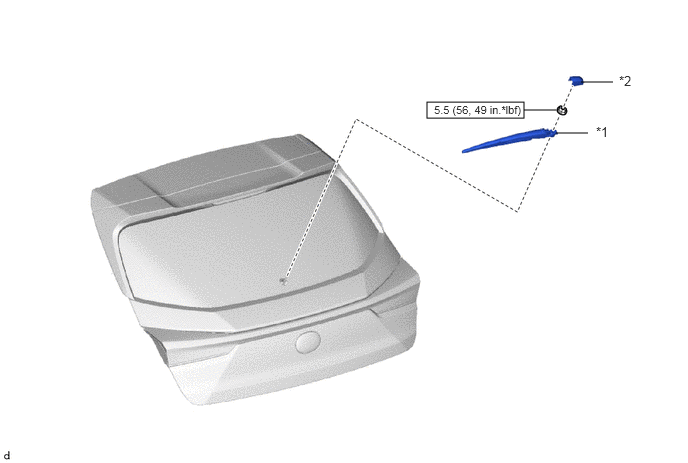

| *1 | REAR WIPER ARM AND BLADE ASSEMBLY | *2 | REAR WIPER ARM HEAD CAP |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

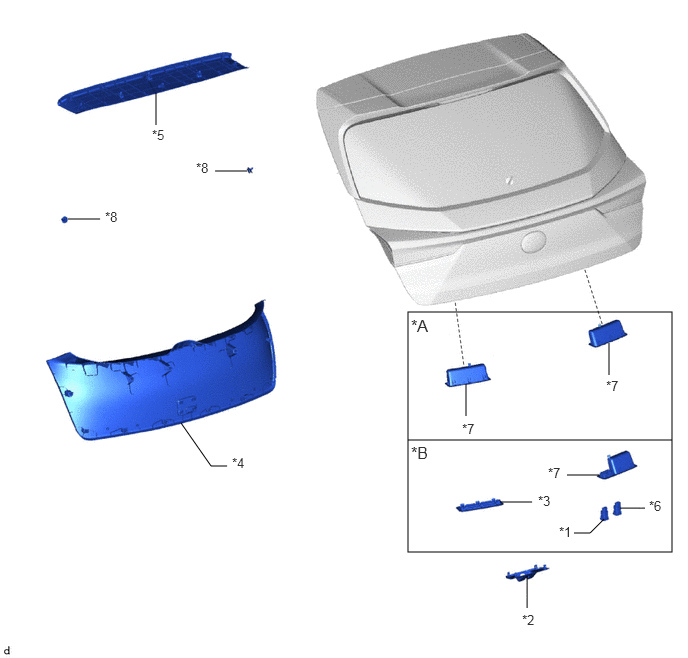

| *A | w/o Power Back Door | *B | w/ Power Back Door |
| *1 | BACK DOOR CONTROL SWITCH | *2 | BACK DOOR LOCK COVER |
| *3 | BACK DOOR TRIM BASE | *4 | BACK DOOR TRIM BOARD ASSEMBLY |
| *5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | *6 | DOOR CONTROL SWITCH |
| *7 | DOOR PULL HANDLE | *8 | ROPE HOOK |

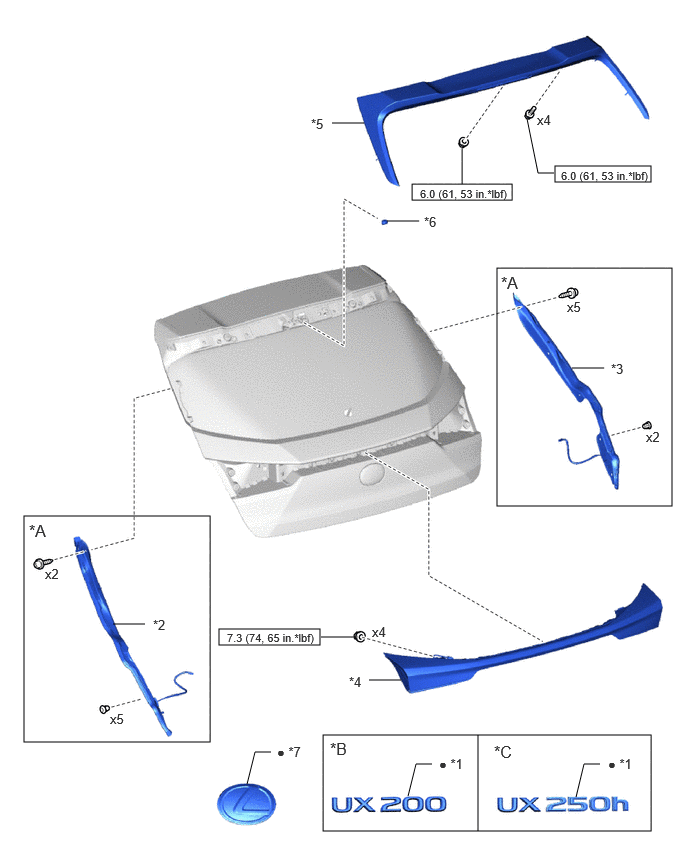

| *A | w/ Power Back Door | *B | for Gasoline Model |
| *C | for HV Model | - | - |
| *1 | NO. 2 BACK DOOR NAME PLATE | *2 | POWER BACK DOOR SENSOR ASSEMBLY LH |
| *3 | POWER BACK DOOR SENSOR ASSEMBLY RH | *4 | REAR LIGHT ASSEMBLY |
| *5 | REAR SPOILER ASSEMBLY | *6 | REAR WASHER NOZZLE |
| *7 | SYMBOL EMBLEM | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

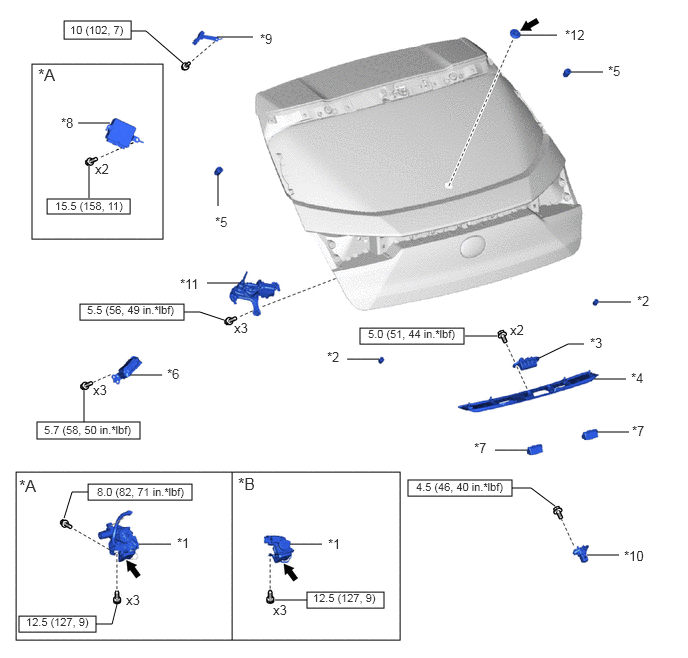

| *A | w/ Power Back Door | *B | w/o Power Back Door |
| *1 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | *2 | BACK DOOR LOWER STOPPER CUSHION |
| *3 | BACK DOOR OPENER SWITCH ASSEMBLY | *4 | BACK DOOR OUTSIDE HANDLE PLATE |
| *5 | BACK DOOR UPPER STOPPER CUSHION | *6 | BACK DOOR WEIGHT |
| *7 | LICENSE PLATE LIGHT ASSEMBLY | *8 | MULTIPLEX NETWORK DOOR ECU |
| *9 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *10 | REAR TELEVISION CAMERA ASSEMBLY |
| *11 | REAR WIPER MOTOR ASSEMBLY | *12 | REAR WIPER MOTOR GROMMET |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |

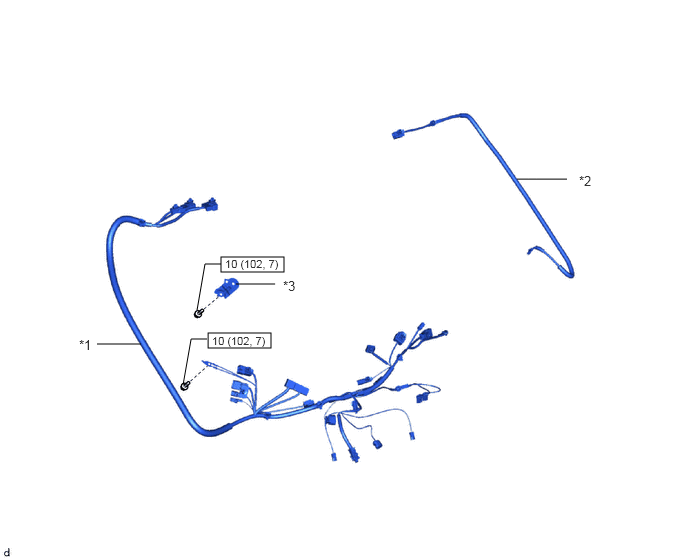

| *1 | NO. 2 BACK DOOR WIRE | *2 | NO. 5 ANTENNA CORD SUB-ASSEMBLY |
| *3 | WIRING HARNESS CLAMP BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
