Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
(Door / Hatch) (Service Information) (2 Of 2)
>>
Back Door Support
>>
Components [10/2018 - ]
Components [10/2018 - ]

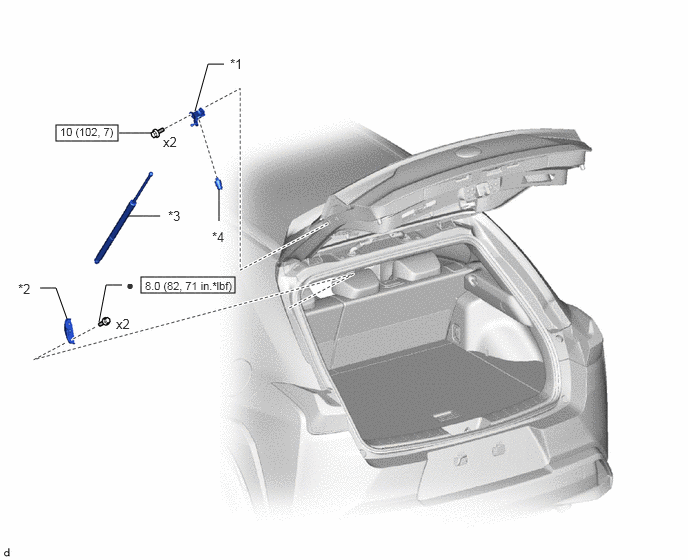

Fig 1: Back Door Support Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BACK DOOR DAMPER STAY LOWER BRACKET
*2
BACK DOOR DAMPER STAY UPPER BRACKET
*3
BACK DOOR STAY ASSEMBLY
*4
BACK DOOR UPPER STOPPER CUSHION
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
