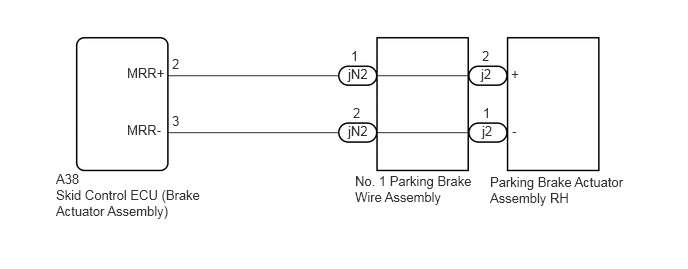

DTC C0610-00: Right Electric Parking Brake Actuator Control; DTC C0610-11: Right Electric Parking Brake Actuator Control Circuit Short to Ground [10/2018 - 07/2022]: Wiring Diagram

GTY820666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
