Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE ROPE HOOK ASSEMBLY

    Refer to REMOVAL [10/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 07/2022]

  2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 49 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 49 [10/2020 - 07/2022]

  3. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 50 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 50 [10/2020 - 07/2022]

  4. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY

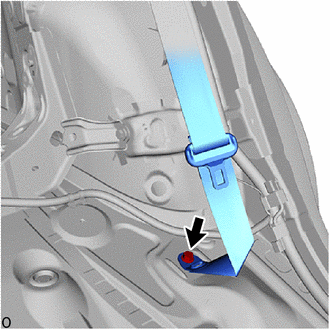

    1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.
      GTY755964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 53 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 53 [10/2020 - 07/2022]

  6. REMOVE REAR SEAT OUTER BELT ASSEMBLY

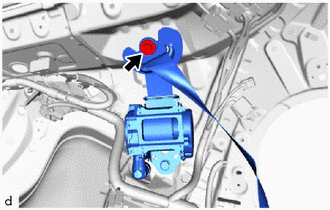

    1. Remove the bolt to disconnect the shoulder anchor of the rear seat outer belt assembly.
      GTY797803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

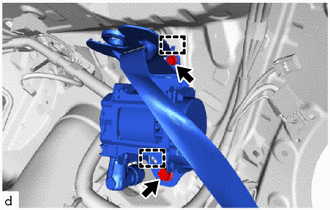

    2. Remove the 2 bolts.
      GTY797802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guides to separate the rear seat outer belt assembly.

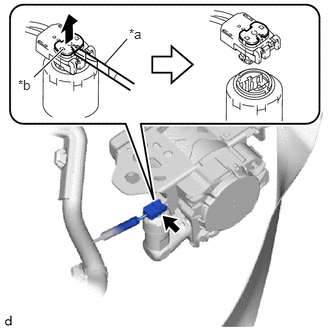

    4. Using a screwdriver with its tip wrapped in protective tape, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.
      GTY800810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
