Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

    Refer to PROCEDURE - Step 28 [10/2018 - 10/2020] Refer to PROCEDURE - Step 28 [10/2020 - 07/2022]

  2. REMOVE REAR DOOR SCUFF PLATE (for HV Model)

    Refer to PROCEDURE - Step 28 [10/2018 - 10/2020] Refer to PROCEDURE - Step 28 [10/2020 - 07/2022]

  3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

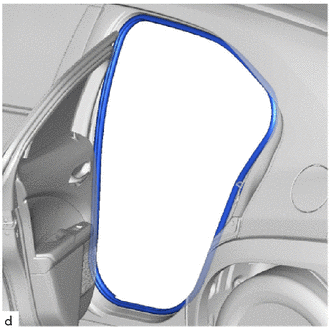

    1. Remove the rear door opening trim weatherstrip.
      GTY807582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
