Removal [10/2018 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 20 [10/2018 - 10/2020] Refer to PROCEDURE - Step 20 [10/2020 - 07/2022] Refer to PROCEDURE - Step 18 [07/2022 - ]

  2. REMOVE COWL SIDE TRIM BOARD

    Refer to PROCEDURE - Step 22 [10/2018 - 10/2020] Refer to PROCEDURE - Step 22 [10/2020 - 07/2022] Refer to PROCEDURE - Step 20 [07/2022 - ]

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

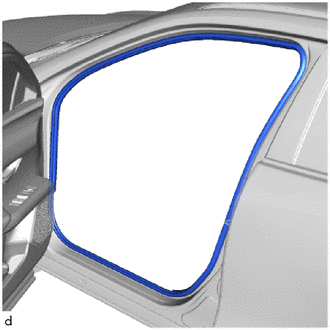

    1. Remove the front door opening trim weatherstrip.
      GTY806591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
