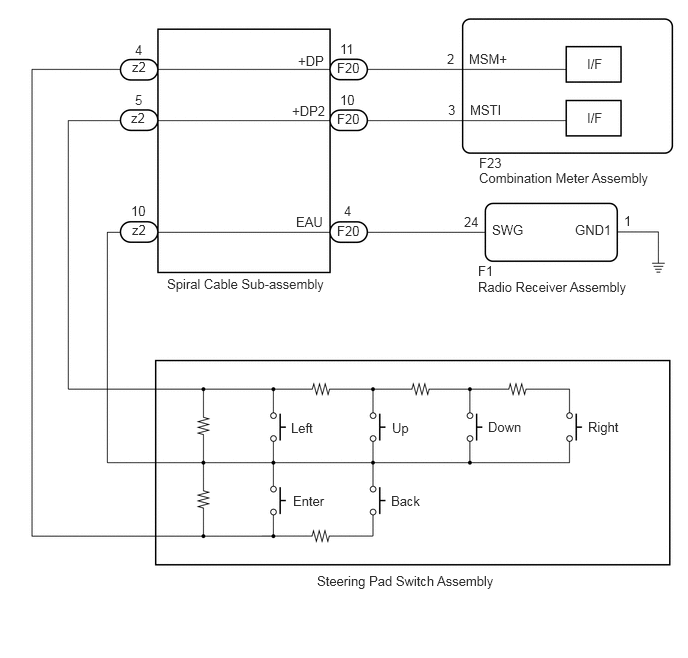

Steering Pad Switch Circuit [10/2018 - ]: Wiring Diagram

GTY786727

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
