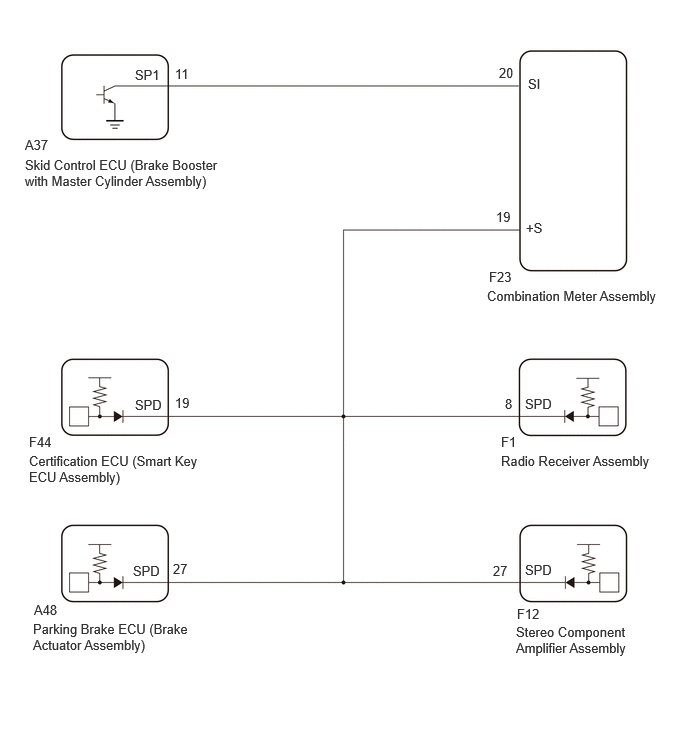

Speed Signal Circuit [07/2022 - ]: Wiring Diagram

GTY1135572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
