DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [10/2018 - ]: Wiring Diagram

  1. LH SIDE

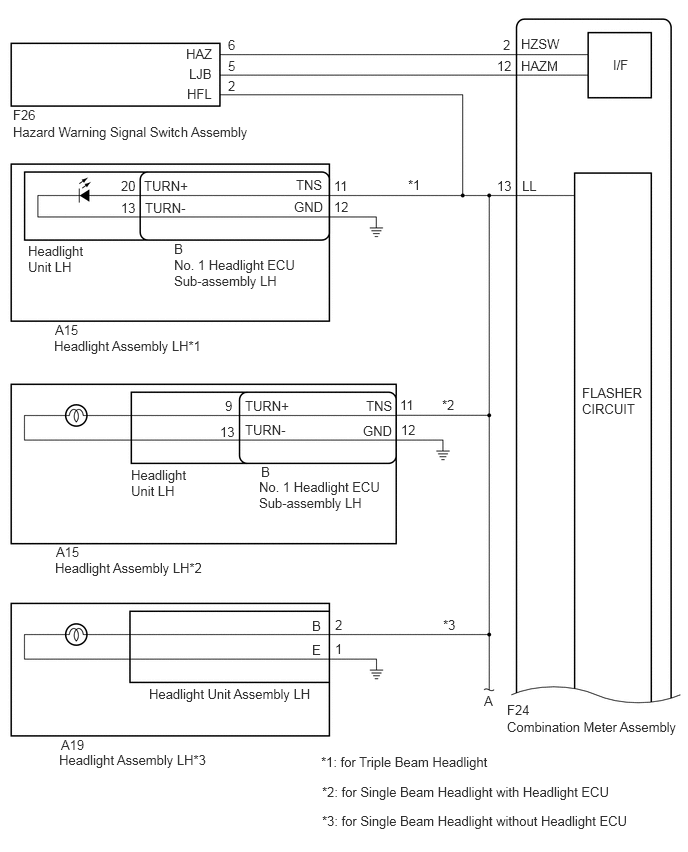

    GTY782169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

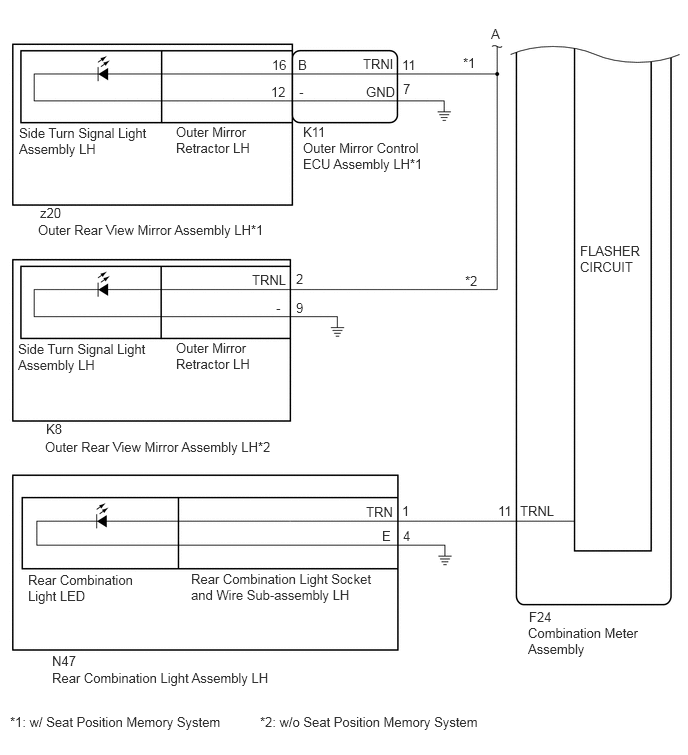

    GTY776009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. RH SIDE

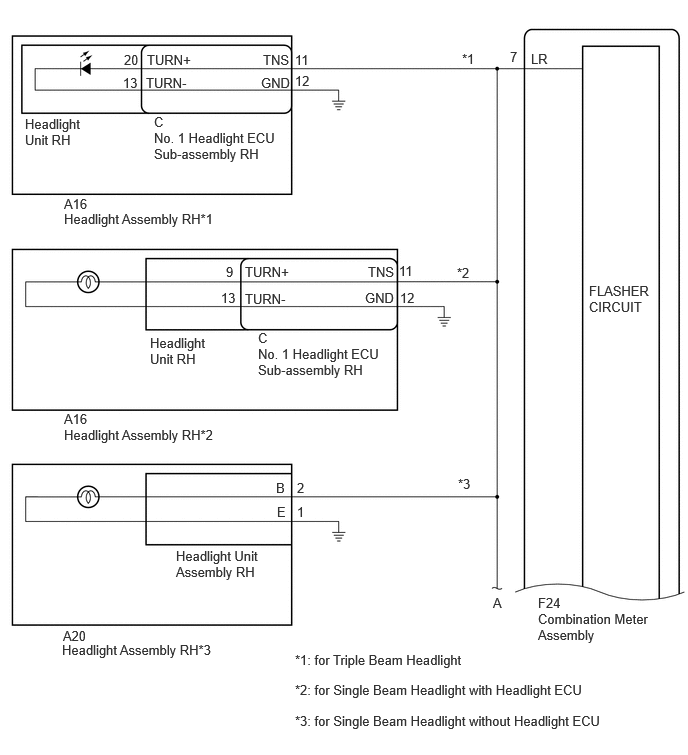

    GTY795186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

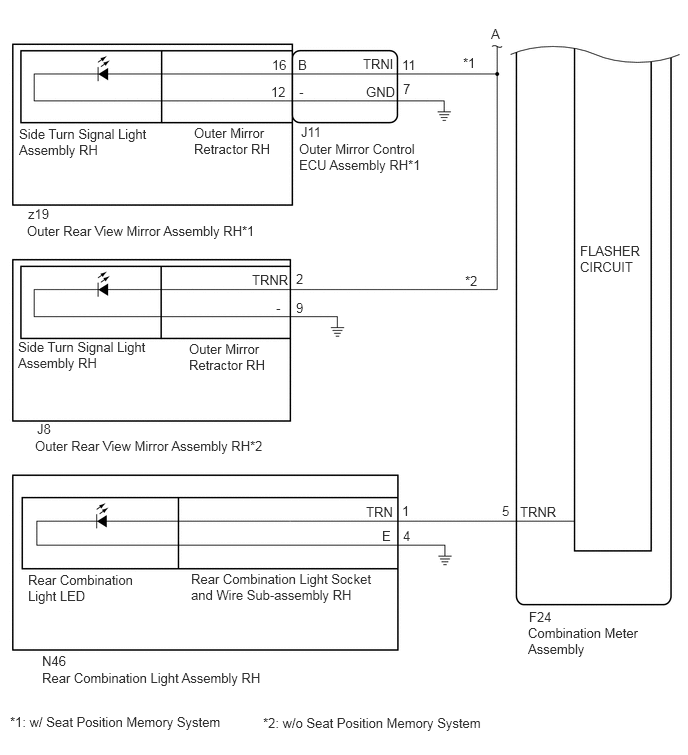

    GTY776010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
