DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [10/2018 - ]: Procedure

  1. CHECK LIGHTS
    1. Inspect the illumination of each turn signal light.

      Result

      Result Proceed to
      All LH turn signal lights do not blink A
      All RH turn signal lights do not blink B

    Result:

    B

    See step  19

    Result:

    A

    See step  2

  2. CHECK LH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY LH)
    1. Disconnect the N47 rear combination light assembly LH connector.
    2. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the rear turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the rear combination light assembly LH is malfunctioning.

      Result

      Result Proceed to
      LH side turn signal lights blink A
      LH side turn signal lights do not blink B

    Result:

    B

    See step  4

    Result:

    A

    See step  3

  3. CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
    1. Interchange the rear combination light socket and wire sub-assembly LH with RH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    2. Check that the rear turn signal light operates normally.

      OK

      Rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LED. Refer to  DISASSEMBLY [10/2018 - ]

  4. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH OR COMBINATION METER ASSEMBLY - BODY GROUND)
    1. Disconnect the F24 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N47-1 (TRN) or F24-11 (TRNL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/ Seat Position Memory System A
      w/o Seat Position Memory System B

    Result:

    B

    See step  13

    Result:

    A

    See step  6

  6. CHECK LH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)
    1. Connect the N47 rear combination light assembly LH connector.
    2. Connect the F24 combination meter assembly connector.
    3. Disconnect the z20 outer rear view mirror assembly LH connector.
    4. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the side turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the outer rear view mirror assembly LH is malfunctioning.

      Result

      Result Proceed to
      LH side turn signal lights blink A
      LH side turn signal lights do not blink B

    Result:

    B

    See step  8

    Result:

    A

    See step  7

  7. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
    1. Remove the side turn signal light assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the side turn signal light assembly LH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE OUTER MIRROR RETRACTOR LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

  8. CHECK LH SIDE LIGHTS (HEADLIGHT ASSEMBLY LH)
    1. Connect the z20 outer rear view mirror assembly LH connector.
    2. Disconnect the A15 headlight assembly LH*1 connector.
    3. Disconnect the A19 headlight assembly LH*2 connector.
    4. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.

      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Result Proceed to
      LH side turn signal lights blink (w/ Headlight ECU) A
      LH side turn signal lights blink (w/o Headlight ECU) B
      LH side turn signal lights do not blink C

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    See step  10

    Result:

    A

    See step  9

  9. CHECK LH SIDE LIGHTS (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH)
    GTY813912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Triple Beam Headlight *B for Single Beam Headlight
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-20 (TURN+) - B-13 (TURN-) or A15-11 (TNS) - A15-12 (GND)*1 Always 10 kΩ or higher
      B-9 (TURN+) - B-13 (TURN-) or A15-11 (TNS) - A15-12 (GND)*2 Always 10 kΩ or higher
      1. *1: for Triple Beam Headlight
      2. *2: for Single Beam Headlight

      Result

      Result Proceed to
      OK (for Triple Beam Headlight) A
      OK (for Single Beam Headlight) B
      NG C

    Result:

    A

    REPLACE HEADLIGHT UNIT LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    B

    REPLACE HEADLIGHT UNIT LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

  10. CHECK LH SIDE LIGHTS (HAZARD WARNING SIGNAL SWITCH ASSEMBLY)
    1. Connect the A15 headlight assembly LH connector.
    2. Disconnect the F26 hazard warning signal switch assembly connector.
    3. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.

      Result

      Result Proceed to
      LH side turn signal lights blink A
      LH side turn signal lights do not blink B

    Result:

    A

    REPLACE HAZARD WARNING SIGNAL SWITCH ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    B

    See step  11

  11. CHECK LH SIDE LIGHTS (OUTER MIRROR CONTROL ECU ASSEMBLY LH)

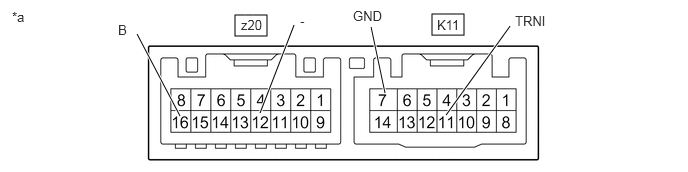

    GTY809688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Outer Mirror Control ECU Assembly LH)    		 - -
    1. Remove the outer mirror control ECU assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z20-16 (B) - z20-12 (-) or K11-11 (TRNI) - K11-7 (GND) Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

    Result:

    OK

    See step  12

  12. CHECK HARNESS AND CONNECTOR (EACH CONNECTED PART - BODY GROUND)
    1. Disconnect the A15 headlight assembly LH*1 connector.
    2. Disconnect the A19 headlight assembly LH*2 connector.
    3. Disconnect the F24 combination meter assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F26-2 (HFL), A15-11 (TNS), K11-11 (TRNI) or F24-13 (LL) - Body ground*1 Always 10 kΩ or higher
      F26-2 (HFL), A19-2 (B), K11-11 (TRNI) or F24-13 (LL) - Body ground*2 Always 10 kΩ or higher
      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  13. CHECK LH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)
    1. Connect the N47 rear combination light assembly LH connector.
    2. Connect the F24 combination meter assembly connector.
    3. Disconnect the K8 outer rear view mirror assembly LH connector.
    4. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the side turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the outer rear view mirror assembly LH is malfunctioning.

      Result

      Result Proceed to
      LH side turn signal lights blink A
      LH side turn signal lights do not blink B

    Result:

    B

    See step  15

    Result:

    A

    See step  14

  14. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
    1. Remove the side turn signal light assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the side turn signal light assembly LH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE OUTER MIRROR RETRACTOR LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

  15. CHECK LH SIDE LIGHTS (HEADLIGHT ASSEMBLY LH)
    1. Connect the K8 outer rear view mirror assembly LH connector.
    2. Disconnect the A15 headlight assembly LH*1 connector.
    3. Disconnect the A19 headlight assembly LH*2 connector.
    4. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.

      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Result Proceed to
      LH side turn signal lights blink (w/ Headlight ECU) A
      LH side turn signal lights blink (w/o Headlight ECU) B
      LH side turn signal lights do not blink C

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    See step  17

    Result:

    A

    See step  16

  16. CHECK LH SIDE LIGHTS (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH)
    GTY813912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Triple Beam Headlight *B for Single Beam Headlight
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-20 (TURN+) - B-13 (TURN-) or A15-11 (TNS) - A15-12 (GND)*1 Always 10 kΩ or higher
      B-9 (TURN+) - B-13 (TURN-) or A15-11 (TNS) - A15-12 (GND)*2 Always 10 kΩ or higher
      1. *1: for Triple Beam Headlight
      2. *2: for Single Beam Headlight

      Result

      Result Proceed to
      OK (for Triple Beam Headlight) A
      OK (for Single Beam Headlight) B
      NG C

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

  17. CHECK LH SIDE LIGHTS (HAZARD WARNING SIGNAL SWITCH ASSEMBLY)
    1. Connect the A15 headlight assembly LH connector.
    2. Disconnect the F26 hazard warning signal switch assembly connector.
    3. Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.

      Result

      Result Proceed to
      LH side turn signal lights blink A
      LH side turn signal lights do not blink B

    Result:

    A

    REPLACE HAZARD WARNING SIGNAL SWITCH ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    B

    See step  18

  18. CHECK HARNESS AND CONNECTOR (EACH CONNECTED PART - BODY GROUND)
    1. Disconnect the A15 headlight assembly LH*1 connector.
    2. Disconnect the A19 headlight assembly LH*2 connector.
    3. Disconnect the K8 outer rear view mirror assembly LH connector.
    4. Disconnect the F24 combination meter assembly connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F26-2 (HFL), A15-11 (TNS), K8-2 (TRNL) or F24-13 (LL) - Body ground*1 Always 10 kΩ or higher
      F26-2 (HFL), A19-2 (B), K8-2 (TRNL) or F24-13 (LL) - Body ground*2 Always 10 kΩ or higher
      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  19. CHECK RH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY RH)
    1. Disconnect the N46 rear combination light assembly RH connector.
    2. Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the rear turn signal light blink.

      HINT:

      If the RH side turn signal lights blink, the rear combination light assembly RH is malfunctioning.

      Result

      Result Proceed to
      RH side turn signal lights blink A
      RH side turn signal lights do not blink B

    Result:

    B

    See step  21

    Result:

    A

    See step  20

  20. CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
    1. Interchange the rear combination light socket and wire sub-assembly RH with LH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    2. Check that the rear turn signal light operates normally.

      OK

      Rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LED. Refer to  DISASSEMBLY [10/2018 - ]

  21. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH OR COMBINATION METER ASSEMBLY - BODY GROUND)
    1. Disconnect the F24 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N46-1 (TRN) or F24-5 (TRNR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  22

  22. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/ Seat Position Memory System A
      w/o Seat Position Memory System B

    Result:

    B

    See step  29

    Result:

    A

    See step  23

  23. CHECK RH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)
    1. Connect the N46 rear combination light lens and body RH connector.
    2. Connect the F24 combination meter assembly connector.
    3. Disconnect the z19 outer rear view mirror assembly RH connector.
    4. Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the side turn signal light blink.

      HINT:

      If the RH side turn signal lights blink, the outer rear view mirror assembly RH is malfunctioning.

      Result

      Result Proceed to
      RH side turn signal lights blink A
      RH side turn signal lights do not blink B

    Result:

    B

    See step  25

    Result:

    A

    See step  24

  24. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
    1. Remove the side turn signal light assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the side turn signal light assembly RH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE OUTER MIRROR RETRACTOR RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

  25. CHECK RH SIDE LIGHTS (HEADLIGHT ASSEMBLY RH)
    1. Connect the z19 outer rear view mirror assembly RH connector.
    2. Disconnect the A16 headlight assembly RH*1 connector.
    3. Disconnect the A20 headlight assembly RH*2 connector.
    4. Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the RH side turn signal lights blink, the headlight assembly RH is malfunctioning.

      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Result Proceed to
      RH side turn signal lights blink (w/ Headlight ECU) A
      RH side turn signal lights blink (w/o Headlight ECU) B
      RH side turn signal lights do not blink C

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    See step  27

    Result:

    A

    See step  26

  26. CHECK RH SIDE LIGHTS (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH)
    GTY835780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Triple Beam Headlight *B for Single Beam Headlight
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C-20 (TURN+) - C-13 (TURN-) or A16-11 (TNS) - A16-12 (GND)*1 Always 10 kΩ or higher
      B-9 (TURN+) - B-13 (TURN-) or A16-11 (TNS) - A16-12 (GND)*2 Always 10 kΩ or higher
      1. *1: for Triple Beam Headlight
      2. *2: for Single Beam Headlight

      Result

      Result Proceed to
      OK (for Triple Beam Headlight) A
      OK (for Single Beam Headlight) B
      NG C

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

  27. CHECK RH SIDE LIGHTS (OUTER MIRROR CONTROL ECU ASSEMBLY RH)

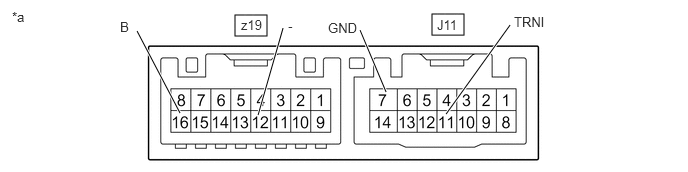

    GTY809689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Outer Mirror Control ECU Assembly RH)    		 - -
    1. Remove the outer mirror control ECU assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z19-16 (B) - z19-12 (-) or J11-11 (TRNI) - J11-7 (GND) Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

    Result:

    OK

    See step  28

  28. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH, OUTER MIRROR CONTROL ECU ASSEMBLY RH OR COMBINATION METER ASSEMBLY - BODY GROUND)
    1. Disconnect the F24 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-11 (TNS), J11-11 (TRNI) or F24-7 (LR) - Body ground*1 Always 10 kΩ or higher
      A20-2 (B), J11-11 (TRNI) or F24-7 (LR) - Body ground*2 Always 10 kΩ or higher
      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  29. CHECK RH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)
    1. Connect the N46 rear combination light assembly RH connector.
    2. Connect the F24 combination meter assembly connector.
    3. Disconnect the J8 outer rear view mirror assembly RH connector.
    4. Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the side turn signal light blink.

      HINT:

      If the RH side turn signal lights blink, the outer rear view mirror assembly RH is malfunctioning.

      Result

      Result Proceed to
      RH side turn signal lights blink A
      RH side turn signal lights do not blink B

    Result:

    B

    See step  31

    Result:

    A

    See step  30

  30. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
    1. Remove the side turn signal light assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the side turn signal light assembly RH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE OUTER MIRROR RETRACTOR RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

  31. CHECK RH SIDE LIGHTS (HEADLIGHT ASSEMBLY RH)
    1. Connect the J8 outer rear view mirror assembly RH connector.
    2. Disconnect the A16 headlight assembly RH*1 connector.
    3. Disconnect the A20 headlight assembly RH*2 connector.
    4. Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the headlight turn signal light blink.

      HINT:

      If the RH side turn signal lights blink, the headlight assembly RH is malfunctioning.

      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Result Proceed to
      RH side turn signal lights blink (w/ Headlight ECU) A
      RH side turn signal lights blink (w/o Headlight ECU) B
      RH side turn signal lights do not blink C

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    See step  33

    Result:

    A

    See step  32

  32. CHECK RH SIDE LIGHTS (NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH)
    GTY835780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Triple Beam Headlight *B for Single Beam Headlight
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C-20 (TURN+) - C-13 (TURN-) or A16-11 (TNS) - A16-12 (GND)*1 Always 10 kΩ or higher
      C-9 (TURN+) - C-13 (TURN-) or A16-11 (TNS) - A16-12 (GND)*2 Always 10 kΩ or higher
      1. *1: for Triple Beam Headlight
      2. *2: for Single Beam Headlight

      Result

      Result Proceed to
      OK (for Triple Beam Headlight) A
      OK (for Single Beam Headlight) B
      NG C

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    B

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    C

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - ]

  33. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH, OUTER REAR VIEW MIRROR ASSEMBLY RH OR COMBINATION METER ASSEMBLY - BODY GROUND)
    1. Disconnect the J8 outer rear view mirror assembly RH connector.
    2. Disconnect the F24 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-11 (TNS), J8-2 (TRNR) or F24-7 (LR) - Body ground*1 Always 10 kΩ or higher
      A20-2 (B), J8-2 (TRNR) or F24-7 (LR) - Body ground*2 Always 10 kΩ or higher
      1. *1: w/ Headlight ECU
      2. *2: w/o Headlight ECU

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  Refer to  REMOVAL [07/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
