DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [10/2018 - ]: Wiring Diagram

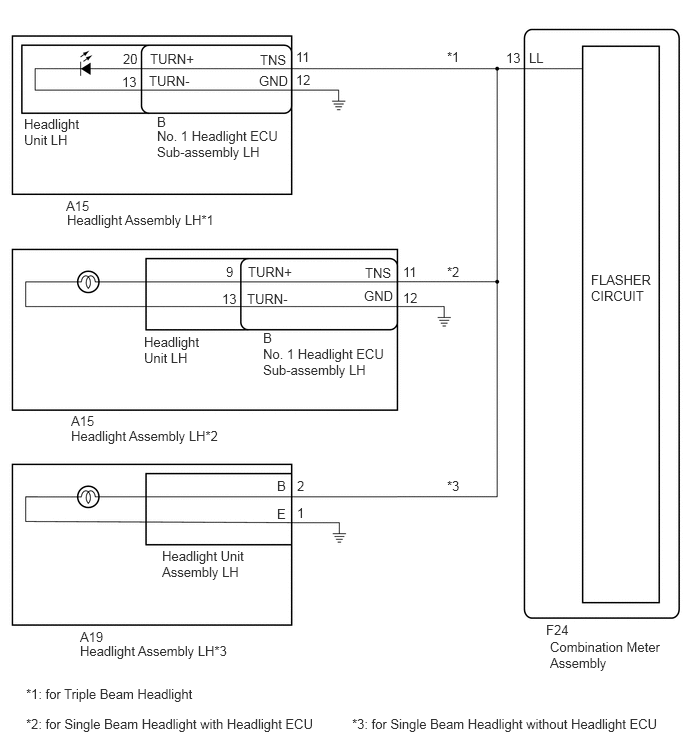

  1. FRONT LH SIDE
    GTY838651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

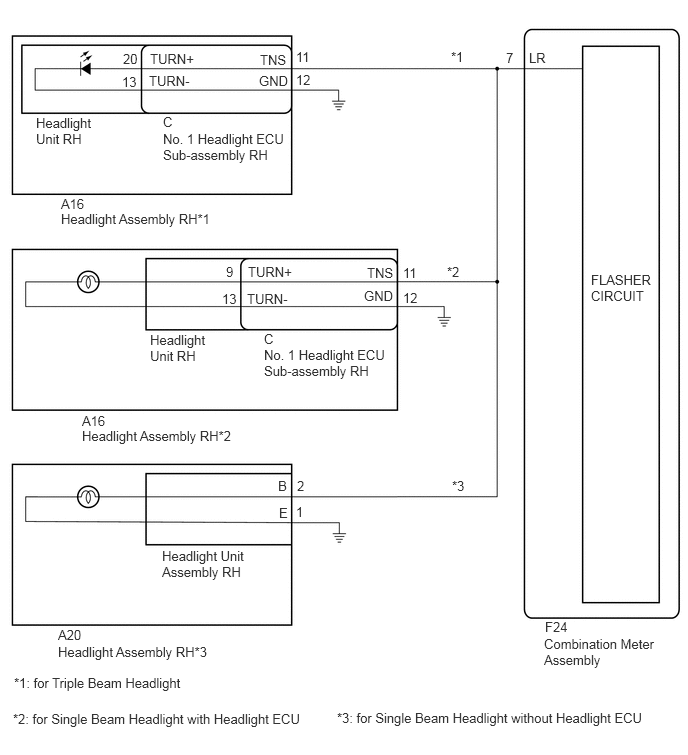

  2. FRONT RH SIDE
    GTY826963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

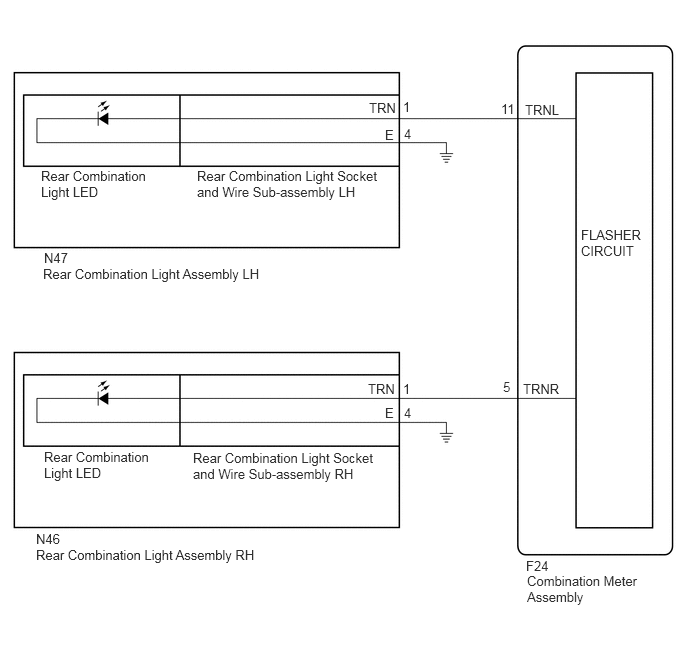

  3. REAR SIDE
    GTY820374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
