Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Disconnect the connector.

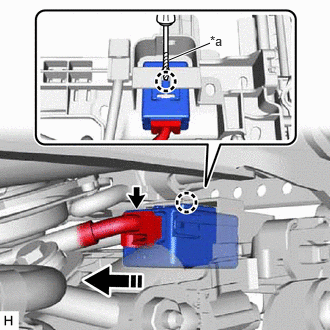

      GTY834327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the seat heater control sub-assembly as shown in the illustration.
