Installation [10/2018 - ]: Procedure

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY

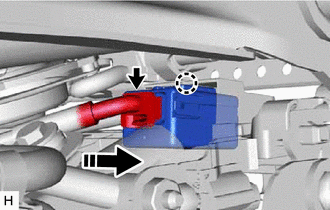

    1. Engage the claw to install the seat heater control sub-assembly as shown in the illustration.
      GTY799921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [10/2018 - 07/2022] , or refer to INSTALLATION [07/2022 - ]
