Removal [07/2022 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE POSITION CONTROL ECU ASSEMBLY LH

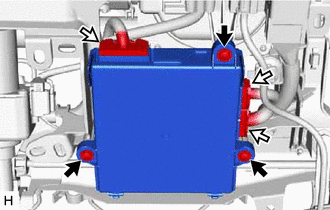

    1. Remove the 3 screws.
      GTY821550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Disconnect the 3 connectors to remove the position control ECU assembly LH.
