Components [10/2018 - ]

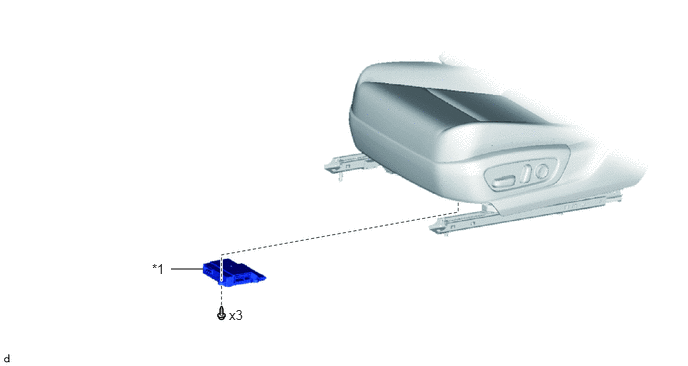

Fig 1: Power Seat Control ECU Replacement Components
GTY801156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POSITION CONTROL ECU ASSEMBLY LH -
