Removal [10/2018 - 07/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2018 - 07/2022]

  2. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022]

    HINT:

    Use the same procedures for the driver side.

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD

    See step  46

    HINT:

    Use the same procedures for the driver side.

  4. REMOVE FRONT SEAT CUSHION SHIELD

    See step  46

    HINT:

    Use the same procedures for the driver side.

  5. REMOVE UPPER SEAT TRACK RAIL SUB-ASSEMBLY
    NOTE:

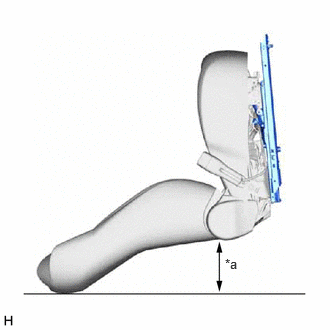

    • In order to reduce the risk of damage to the part and to ensure ease of operations, secure a space of 80 mm (3.15 in.) or more as shown in the illustration.
      GTY1011703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 80 mm (3.15 in.)
    • Secure enough space to ensure that the upper seat track rail sub-assembly does not contact any other objects during installation.

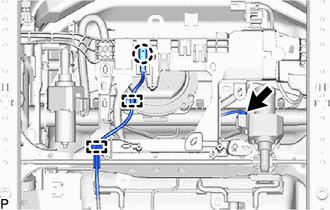

    1. Disconnect the slide motor connector.
      GTY1085061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

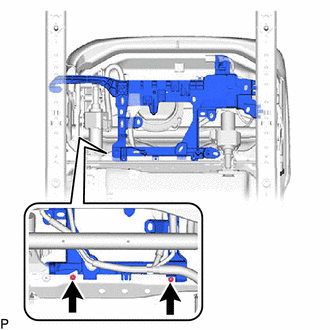

    2. Disengage the claw and 2 clamps.
    3. Remove the 2 screws.
      GTY1085053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

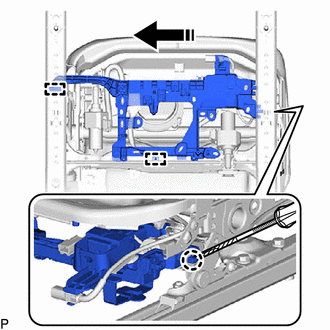

    4. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY1085009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
      Protective Tape
    5. Disengage the 2 guides to remove the front seat cushion wire harness holder as shown in the illustration.
      NOTE:

      When remove the front seat cushion wire harness holder, take care not to damage each connector and wire harness.

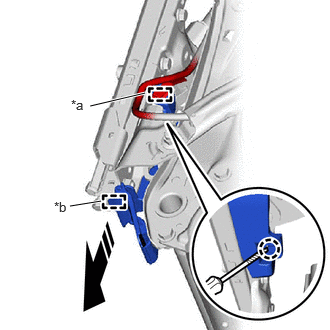

    6. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY1084989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
      Remove in this direction
      Protective Tape
    7. Disengage the clamp.
    8. Disengage the guide to remove the front seat lower cushion shield LH from the upper seat track rail sub-assembly as shown in the illustration.

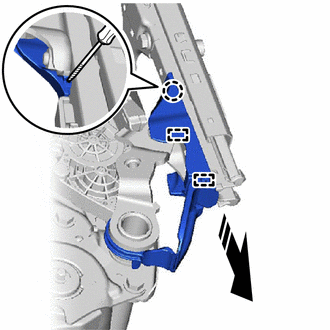

    9. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY1084971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
      Protective Tape
    10. Disengage the 2 guides to remove the front seat lower cushion shield RH from the upper seat track rail sub-assembly as shown in the illustration.

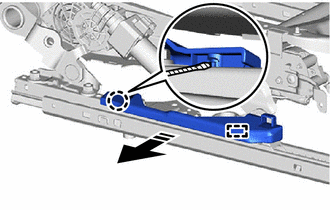

    11. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY1085034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
      Protective Tape
    12. Disengage the guide to remove the front seat lower No. 1 cushion shield RH from the upper seat track rail sub-assembly as shown in the illustration.

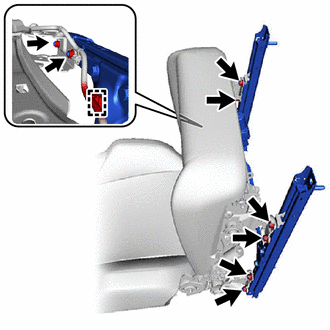

    13. Disengage the clamp.
      GTY1085048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Remove the 8 nuts and upper seat track rail sub-assembly.
      NOTE:

      Do not reuse the upper seat track rail sub-assembly.
