Seat Heater for Front Right Seat does not Operate [10/2018 - 07/2022]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > Air Conditioner > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Check for DTCs.

      Body Electrical > Air Conditioner > Trouble Codes

      OK

      DTC B14B5 and B14C0 are not output.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2018 - 07/2022]

    Result:

    OK

    See step  3

  3. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Air Conditioner / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > Air Conditioner > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Front Right Seat Heater Front RH side seat heater operation OFF or ON -

      Body Electrical > Air Conditioner > Active Test

      Tester Display
      Front Right Seat Heater

      OK

      The seat heater operates normally.

      Result

      Result Proceed to
      OK A
      NG (for Standard Seat Type) B
      NG (for Sports Seat Type) C

    Result:

    A

    REPLACE REFRESHING SEAT SWITCH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    C

    See step  12

    Result:

    B

    See step  4

  4. CHECK HARNESS AND CONNECTOR (FRONT SEAT CUSHION HEATER ASSEMBLY RH - BODY GROUND)
    1. Disconnect the e5 front seat cushion heater assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      e5-2 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH
    1. Remove the front seatback heater assembly RH.

      Refer to REMOVAL [10/2018 - 07/2022]

    2. Inspect the front seatback heater assembly RH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEATBACK HEATER ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    OK

    See step  6

  6. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH
    1. Remove the front seat cushion heater assembly RH.

      Refer to REMOVAL [10/2018 - 07/2022]

    2. Inspect the front seat cushion heater assembly RH.

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT CUSHION HEATER ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (IG POWER SUPPLY - SEAT HEATER CONTROL SUB-ASSEMBLY RH)
    1. Disconnect the seat heater control sub-assembly RH connector.
      GTY798768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Seat Heater Control Sub-assembly RH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      e8-1 (+B1) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK SEAT HEATER CONTROL SUB-ASSEMBLY RH
    1. Reconnect the e8 seat heater control sub-assembly RH connector.
    2. Disconnect the air conditioning amplifier assembly connector.

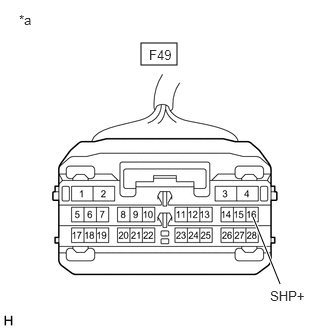

      GTY797548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      F49-16 (SHP+) - Body ground Ignition switch ON 5 to 13 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (SEAT HEATER CONTROL SUB-ASSEMBLY RH - FRONT SEAT CUSHION HEATER ASSEMBLY RH)
    1. Disconnect the e8 seat heater control sub-assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      e8-7 (HTR1) - e5-1 (HTR) Always Below 1 Ω
      e8-7 (HTR1) or e5-1 (HTR) - Body ground Always 10 kΩ or higher
      e8-10 (E) - e5-6 (E) Always Below 1 Ω
      e8-10 (E) or e5-6 (E) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Reconnect the air conditioning amplifier assembly connector.
    2. Reconnect the e5 front seat cushion heater assembly RH connector.
    3. Reconnect the e8 seat heater control sub-assembly RH connector.
    4. Remove the air conditioning amplifier assembly with its connectors still connected.

      Refer to REMOVAL [10/2018 - 07/2022]

    5. Measure the voltage according to the value(s) in the table below.

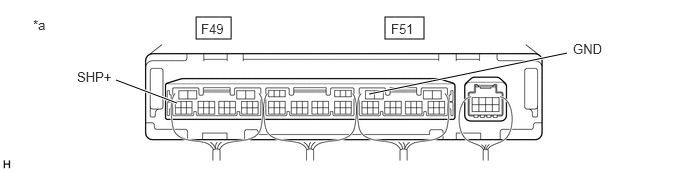

      GTY781370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Air Conditioning Amplifier Assembly)      		 - -

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      F49-16 (SHP+) - F51-4 (GND) Ignition switch ON, refreshing seat switch on (LO) Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEAT HEATER CONTROL SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    NG

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]

  11. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - SEAT HEATER CONTROL SUB-ASSEMBLY RH)
    1. Disconnect the e8 seat heater control sub-assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F49-16 (SHP+) - e8-5 (SWR) Always Below 1 Ω
      F49-16 (SHP+) or e8-5 (SWR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEAT HEATER CONTROL SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  12. CHECK HARNESS AND CONNECTOR (FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION PAD WITH COVER RH) - BODY GROUND)
    1. Disconnect the e5 front seat cushion heater (front seat cushion pad with cover RH) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      e5-2 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  13

  13. INSPECT FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER RH)
    1. Remove the front seatback heater (front seatback pad with cover RH).

      Refer to REMOVAL [10/2018 - 07/2022]

    2. Inspect the front seatback heater (front seatback pad with cover RH).

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER RH). Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    OK

    See step  14

  14. INSPECT FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION PAD WITH COVER RH)
    1. Remove the front seat cushion heater (front seat cushion pad with cover RH).

      Refer to REMOVAL [10/2018 - 07/2022]

    2. Inspect the front seat cushion heater (front seat cushion pad with cover RH).

      Refer to INSPECTION [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION PAD WITH COVER RH). Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    OK

    See step  15

  15. CHECK HARNESS AND CONNECTOR (IG POWER SUPPLY - SEAT HEATER CONTROL SUB-ASSEMBLY RH)
    1. Disconnect the seat heater control sub-assembly RH connector.
      GTY798768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Seat Heater Control Sub-assembly RH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      e8-1 (+B1) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  16

  16. CHECK SEAT HEATER CONTROL SUB-ASSEMBLY RH
    1. Reconnect the e8 seat heater control sub-assembly RH connector.
    2. Disconnect the air conditioning amplifier assembly connector.
      GTY797548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      F49-16 (SHP+) - Body ground Ignition switch ON 5 to 13 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  19

    Result:

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (SEAT HEATER CONTROL SUB-ASSEMBLY RH - FRONT SEAT CUSHION HEATER (FRONT SEAT CUSHION PAD WITH COVER RH))
    1. Disconnect the e8 seat heater control sub-assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      e8-7 (HTR1) - e5-1 (HTR) Always Below 1 Ω
      e8-7 (HTR1) or e5-1 (HTR) - Body ground Always 10 kΩ or higher
      e8-10 (E) - e5-6 (E) Always Below 1 Ω
      e8-10 (E) or e5-6 (E) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  18

  18. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Reconnect the air conditioning amplifier assembly connector.
    2. Reconnect the e5 front seat cushion heater (front seat cushion pad with cover RH) connector.
    3. Reconnect the e8 seat heater control sub-assembly RH connector.
    4. Remove the air conditioning amplifier assembly with its connectors still connected.

      Refer to REMOVAL [10/2018 - 07/2022]

    5. Measure the voltage according to the value(s) in the table below.
      GTY781370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Air Conditioning Amplifier Assembly)      		 - -

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      F49-16 (SHP+) - F51-4 (GND) Ignition switch ON, refreshing seat switch on (LO) Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEAT HEATER CONTROL SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    NG

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]

  19. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - SEAT HEATER CONTROL SUB-ASSEMBLY RH)
    1. Disconnect the e8 seat heater control sub-assembly RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F49-16 (SHP+) - e8-5 (SWR) Always Below 1 Ω
      F49-16 (SHP+) or e8-5 (SWR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEAT HEATER CONTROL SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2018 - 07/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
