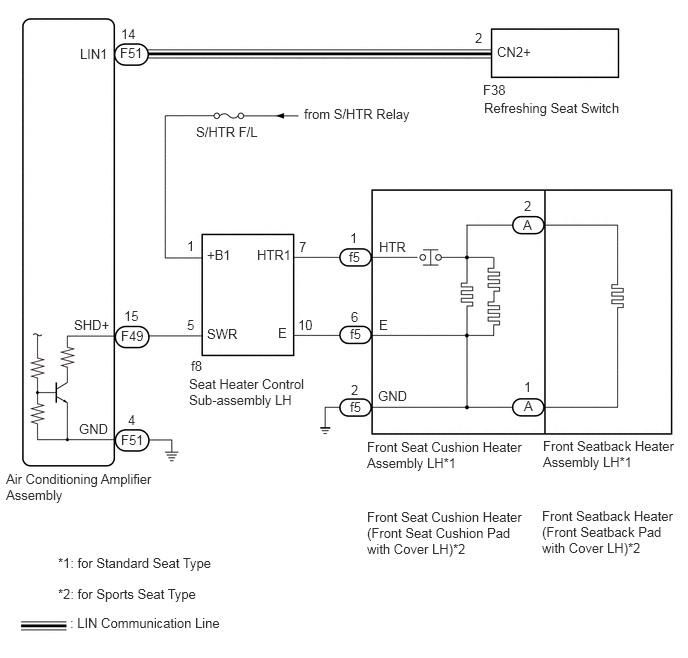

Seat Heater for Front Left Seat does not Operate [10/2018 - 07/2022]: Wiring Diagram

GTY792595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
