DTC B14B5: Lost Communication with Front Seat Temperature Adjustment Switch LIN [10/2018 - 07/2022]: Procedure
- CHECK FOR DTC
- Check for DTCs.
Refer to DTC CHECK / CLEAR [10/2018 - ]
Body Electrical > Air Conditioner > Trouble Codes
OK
DTC B14B5 is not output.
Result
Proceed to Only DTC B14B5 is output A DTC B14B2, B14B5 and B14B7 are output (for Gasoline Model) B DTC B14B2, B14B5 and B14B7 are output (for HV Model) C
Result:
B
GO TO AIR CONDITIONING SYSTEM (B14B2). Refer to DTC B14B2: Lost Communication with Front Panel LIN [10/2018 - 07/2022]
Result:
C
GO TO AIR CONDITIONING SYSTEM (B14B2). Refer to DTC B14B2: Lost Communication with Front Panel LIN [10/2018 - 07/2022]
Result:
A
See step 2
- Check for DTCs.
- CHECK HARNESS AND CONNECTOR (IG POWER SUPPLY - REFRESHING SEAT SWITCH - BODY GROUND)
- Disconnect the refreshing seat switch connector.
*a Front view of wire harness connector
(to Refreshing Seat Switch) - Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition F38-1 (IG) - Body ground Ignition switch ON 11 to 14 V Ignition switch off Below 1 V Standard Resistance
Tester Connection Condition Specified Condition F38-4 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Disconnect the refreshing seat switch connector.
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - REFRESHING SEAT SWITCH)
- Disconnect the F51 air conditioning amplifier assembly connector.
- Disconnect the F38 refreshing seat switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F51-14 (LIN1) - F38-2 (CN2+) Always Below 1 Ω F51-14 (LIN1) or F38-2 (CN2+) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
- Connect the air conditioning amplifier assembly connector.

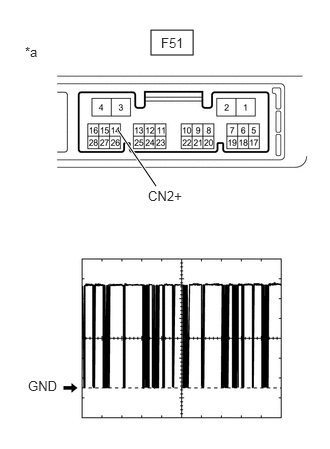

*a Component with harness connected
(Refreshing Seat Switch) - Turn the ignition switch to ON.
- Using an oscilloscope, check the waveform.
Item Content Terminal No. F51-14 (LIN1) - Body ground Tool Setting 2 V/DIV., 20 ms./DIV. Condition Ignition switch ON OK
Waveform is similar to that shown in the illustration.
Result
Proceed to OK NG
Result:
NG
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [10/2018 - 07/2022]
Result:
OK
See step 5
- Connect the air conditioning amplifier assembly connector.
- INSPECT REFRESHING SEAT SWITCH
- Connect the refreshing seat switch connector.

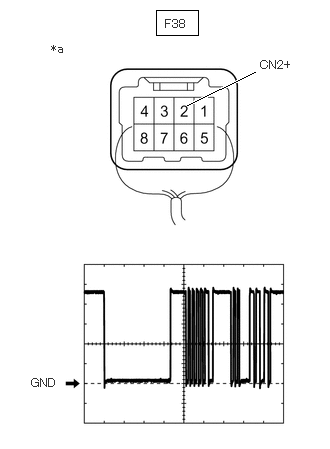

*a Component with harness connected
(Refreshing Seat Switch) - Turn the ignition switch to ON.
- Using an oscilloscope, check the waveform.
Item Content Terminal No. F38-2 (CN2+) - Body ground Tool Setting 2 V/DIV., 20 ms./DIV. Condition Ignition switch ON OK
Waveform is similar to that shown in the illustration.
Result
Proceed to OK NG
Result:
OK
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [10/2018 - 07/2022]
Result:
NG
REPLACE REFRESHING SEAT SWITCH. Refer to REMOVAL [10/2018 - 07/2022]
- Connect the refreshing seat switch connector.
