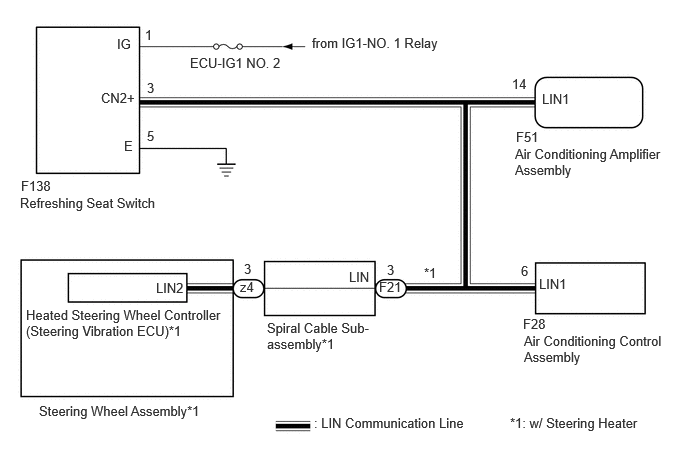

DTC B14B5: Lost Communication with Front Seat Temperature Adjustment Switch LIN [07/2022 - ]: Wiring Diagram

GTY1128413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
