Parts Location [10/2019 - 07/2022]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

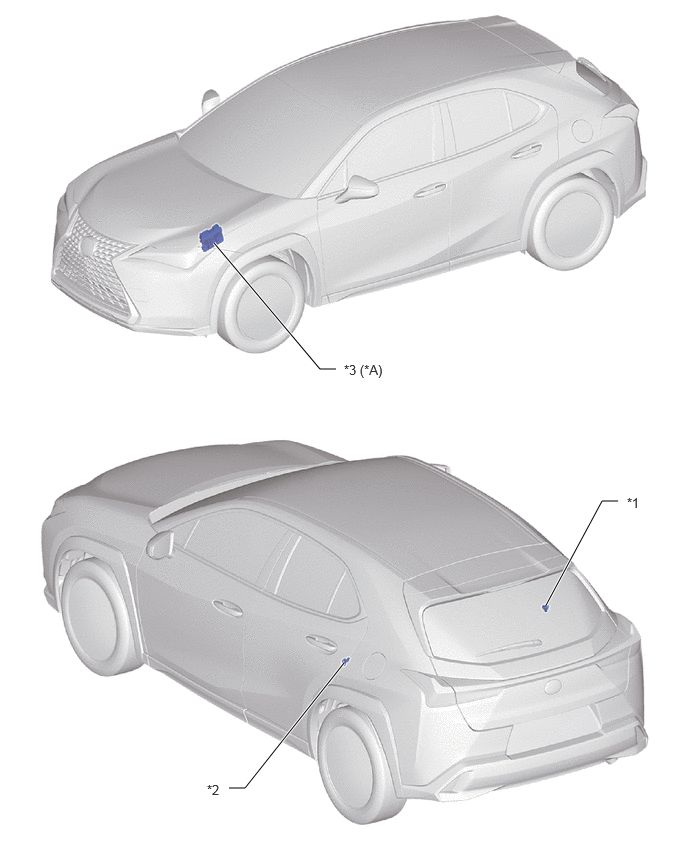

*A	for Gasoline Model	-	-
*1	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*3	ECM	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

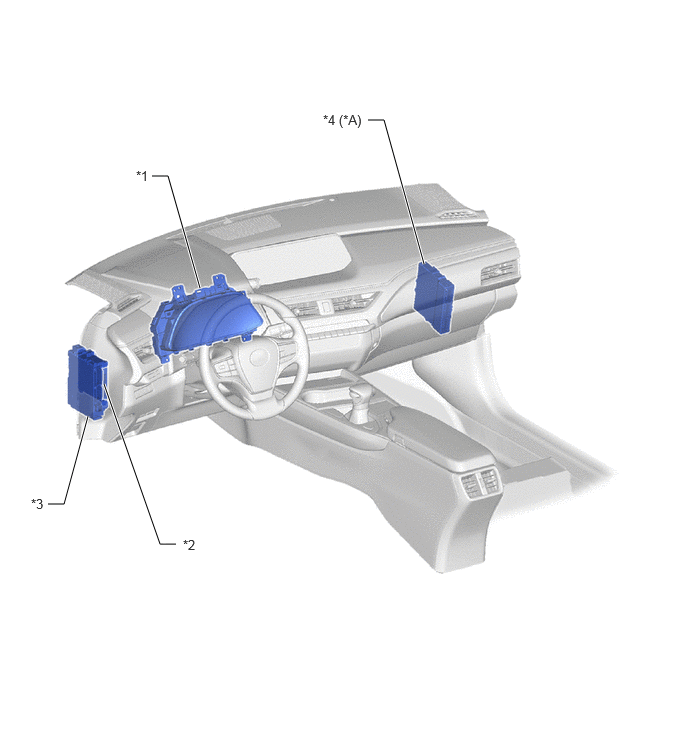

*A	for HV Model	-	-
*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE	*4	HYBRID VEHICLE CONTROL ECU
