Parts Location [07/2022 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

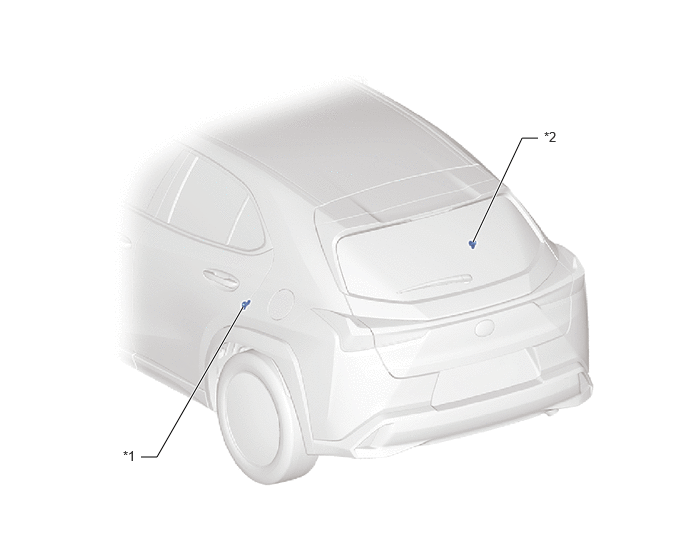

*1

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*2

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

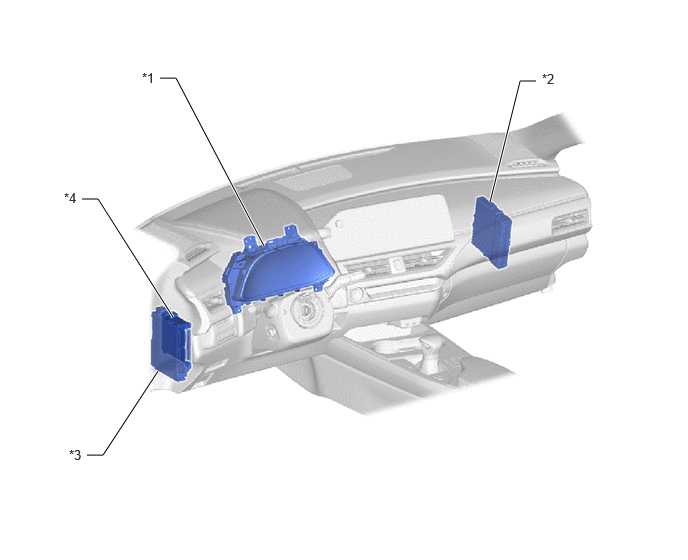

*1	COMBINATION METER ASSEMBLY	*2	HYBRID VEHICLE CONTROL ECU
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
