Parts Location [10/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - P/SEAT F/L FUSE - P/SEAT FUSE

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

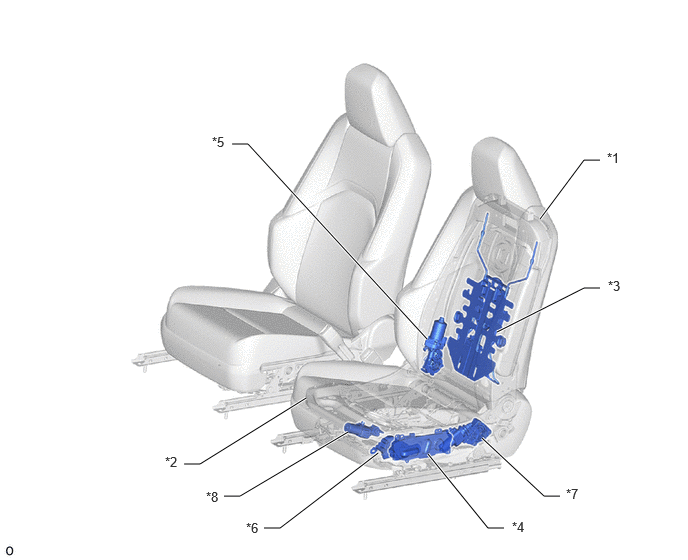

*1	FRONT SEATBACK FRAME SUB-ASSEMBLY LH	*2	FRONT SEAT ADJUSTER ASSEMBLY LH
*3	LUMBAR SUPPORT ADJUSTER ASSEMBLY LH	*4	FRONT POWER SEAT SWITCH ASSEMBLY LH
*5	RECLINING MOTOR	*6	FRONT VERTICAL MOTOR
*7	LIFTER MOTOR	*8	SLIDE MOTOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

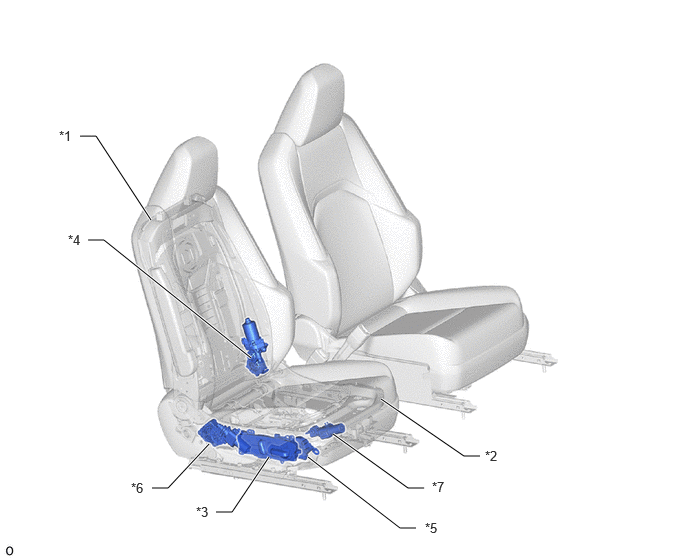

*1	FRONT SEATBACK FRAME SUB-ASSEMBLY RH	*2	FRONT SEAT ADJUSTER ASSEMBLY RH
*3	FRONT POWER SEAT SWITCH ASSEMBLY RH	*4	RECLINING MOTOR
*5	FRONT VERTICAL MOTOR	*6	LIFTER MOTOR
*7	SLIDE MOTOR	-	-
