DTC B2652: Front Vertical Sensor Malfunction [07/2022 - ]: Wiring Diagram

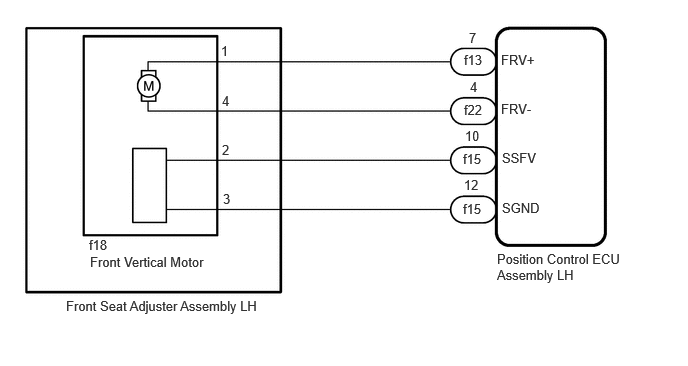

  1. GTY1130020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
