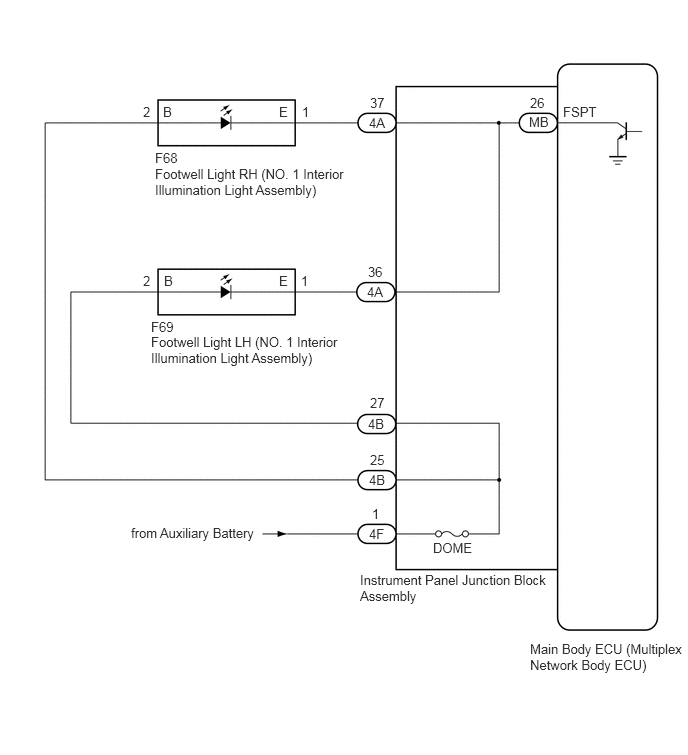

Footwell Light Circuit [10/2018 - 07/2022]: Wiring Diagram

GTY827251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
