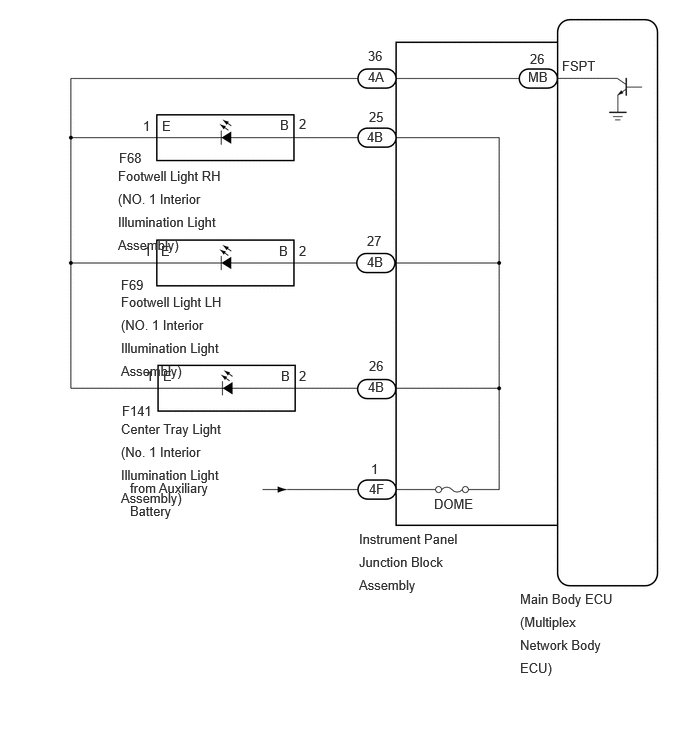

Footwell Light Circuit [07/2022 - ]: Wiring Diagram

GTY1134688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
