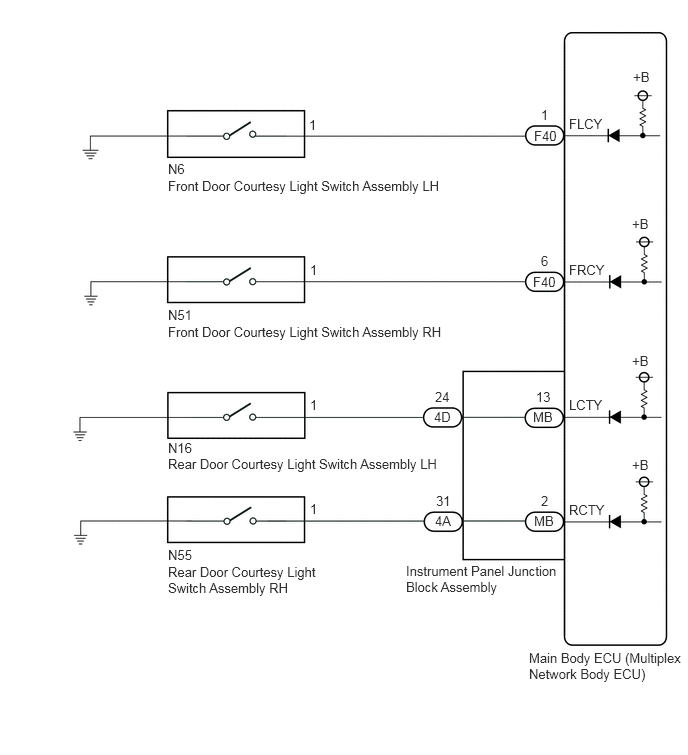

Door Courtesy Switch Circuit [07/2022 - ]: Wiring Diagram

GTY824512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
