Components [10/2018 - ]

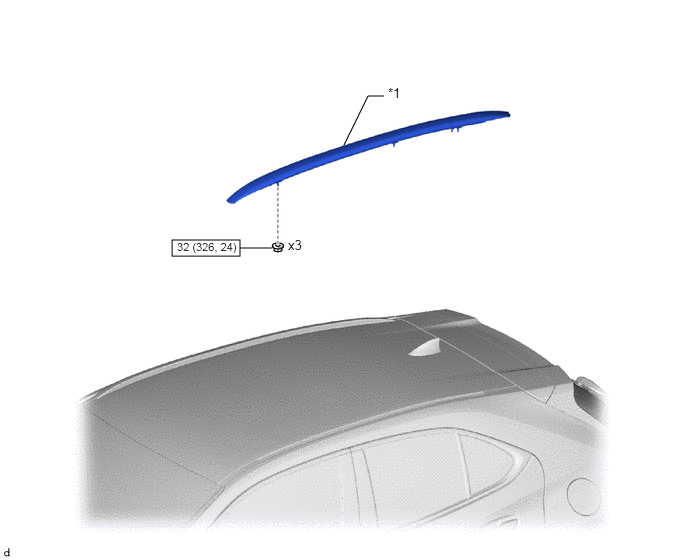

Fig 1: Roof Rack Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ROOF RACK ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

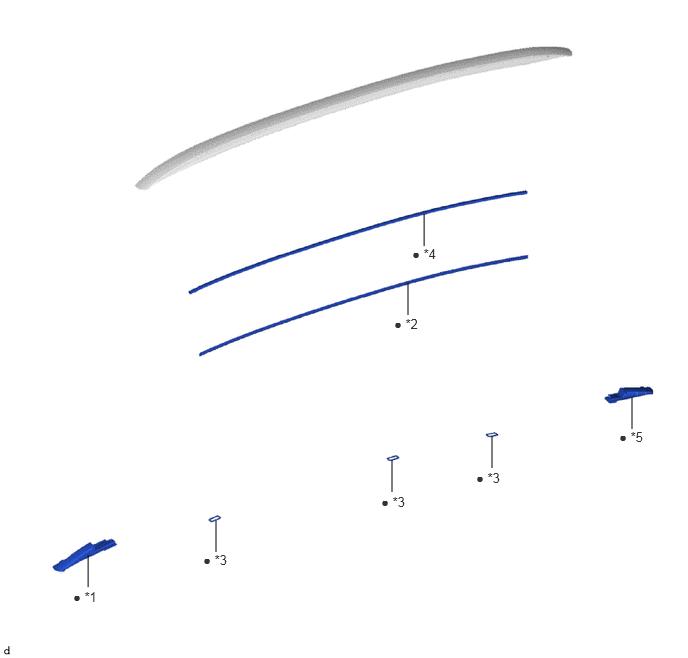

Fig 2: Roof Rack Replacement Components (2 Of 2)

*1	FRONT ROOF RACK LEG CUSHION LH	*2	NO. 1 ROOF CARRIER PROTECTOR
*3	NO. 1 ROOF CARRIER SEAL	*4	NO. 2 ROOF CARRIER PROTECTOR
*5	REAR ROOF RACK LEG CUSHION LH	-	-
•	Non-reusable part	-	-
