Components [10/2018 - ]

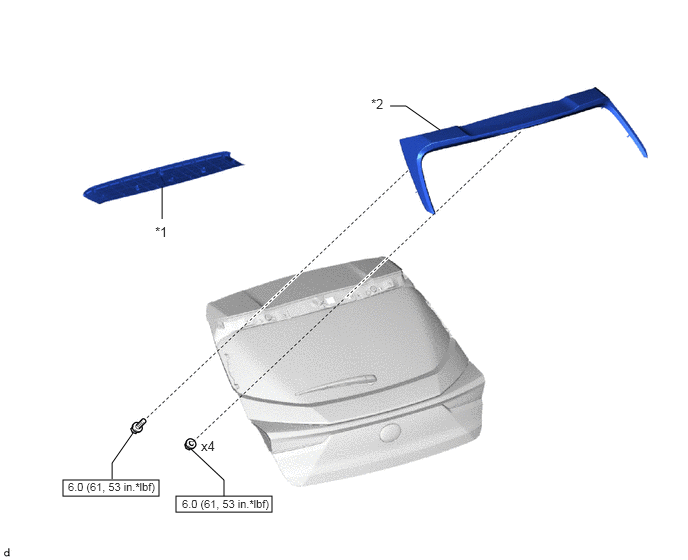

Fig 1: Rear Spoiler Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK DOOR TRIM UPPER PANEL ASSEMBLY	*2	REAR SPOILER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

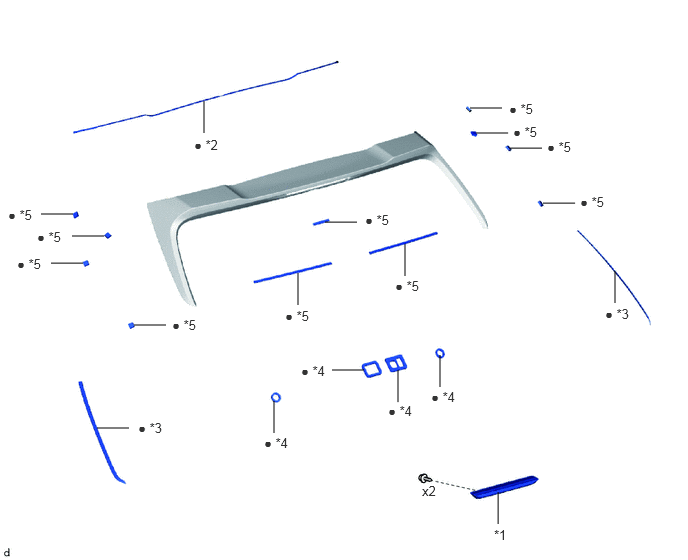

Fig 2: Rear Spoiler Replacement Components (2 Of 2)

*1	CENTER STOP LIGHT ASSEMBLY	*2	NO. 1 REAR SPOILER PROTECTOR
*3	NO. 1 REAR SPOILER SIDE PROTECTOR	*4	NO. 2 REAR SPOILER PROTECTOR
*5	NO. 3 REAR SPOILER PROTECTOR	-	-
•	Non-reusable part	-	-
