Components [10/2018 - ]

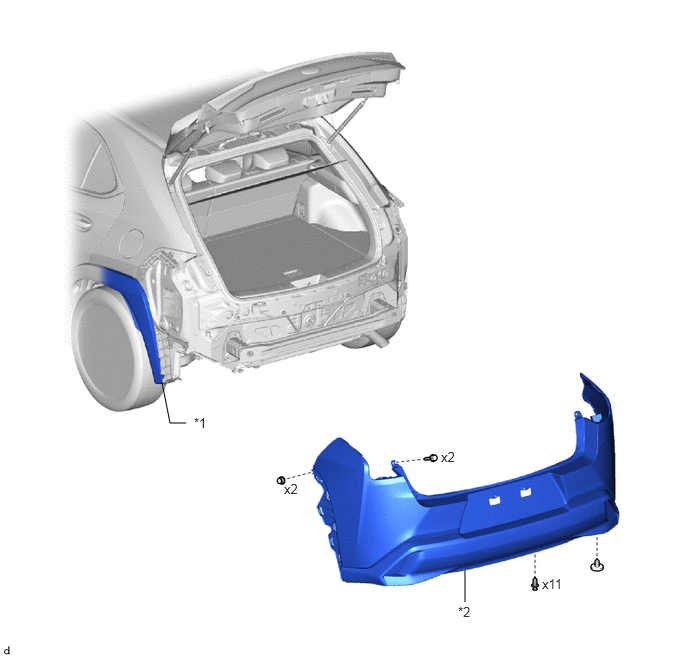

Fig 1: Rear Bumper Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

REAR BUMPER ASSEMBLY

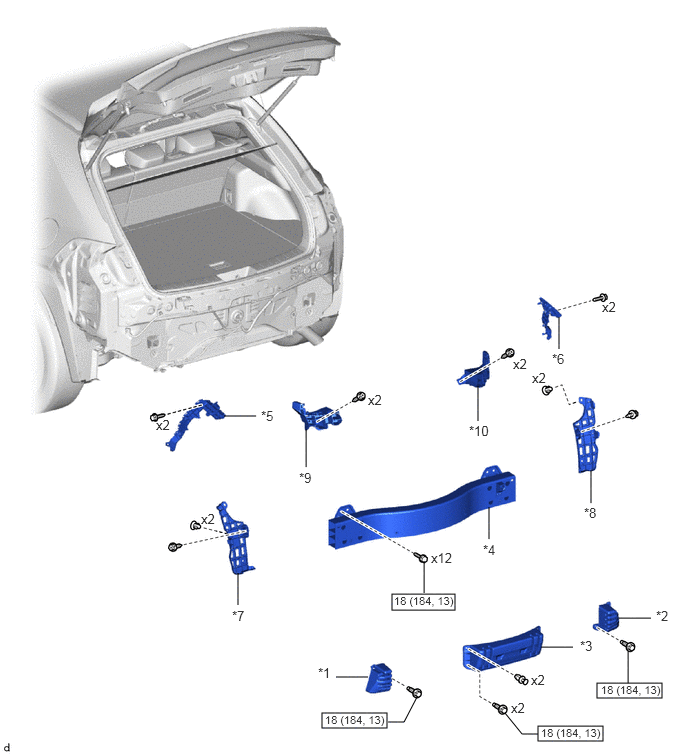

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER ARM REINFORCEMENT LH	*2	REAR BUMPER ARM REINFORCEMENT RH
*3	REAR BUMPER ENERGY ABSORBER	*4	REAR BUMPER NO. 1 REINFORCEMENT
*5	REAR BUMPER SIDE RETAINER LH	*6	REAR BUMPER SIDE RETAINER RH
*7	REAR BUMPER SIDE SEAL LH	*8	REAR BUMPER SIDE SEAL RH
*9	REAR BUMPER UPPER RETAINER LH	*10	REAR BUMPER UPPER RETAINER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

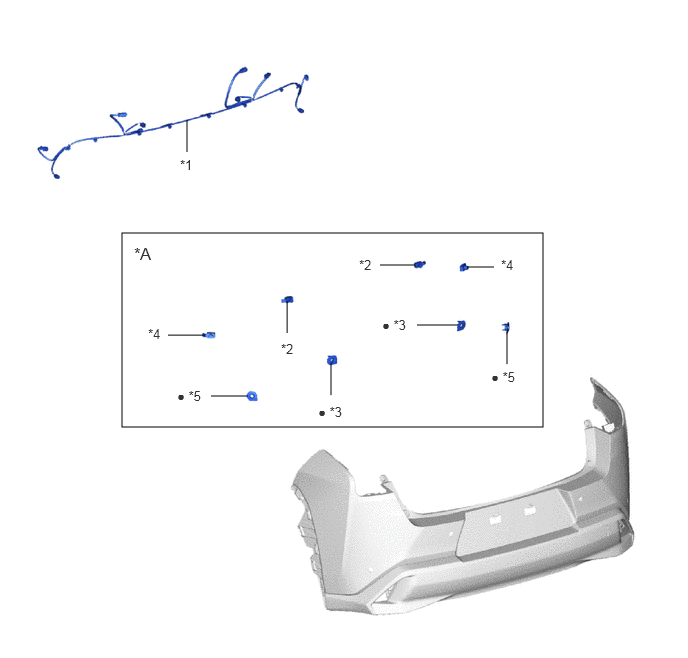

Fig 3: Rear Bumper Replacement Components (3 Of 4)

*A	w/ Intelligent Clearance Sonar System	-	-
*1	NO. 3 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

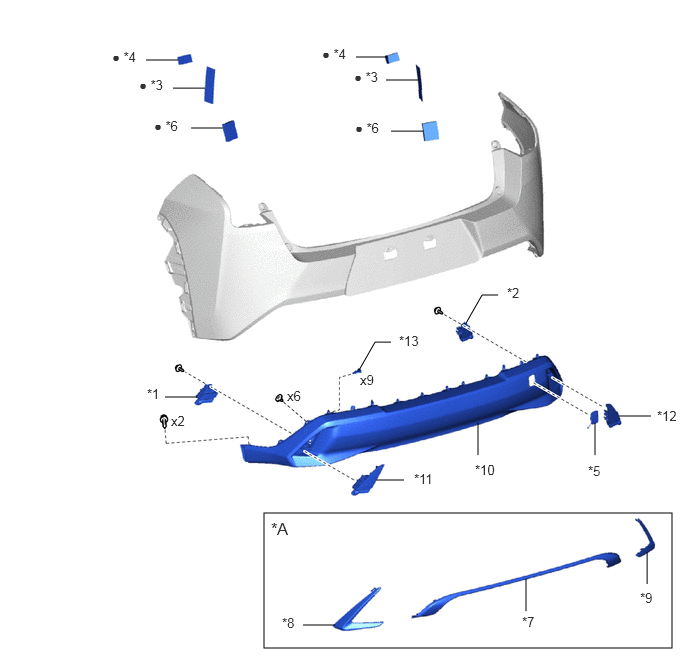

Fig 4: Rear Bumper Replacement Components (4 Of 4)

*A	for Sport Package	-	-
*1	BACK-UP LIGHT LED LH	*2	BACK-UP LIGHT LED RH
*3	NO. 1 MOULDING TAPE	*4	NO. 1 REAR BUMPER PAD
*5	NO. 1 REAR BUMPER PLATE	*6	NO. 2 REAR BUMPER PAD
*7	REAR BUMPER BAR	*8	REAR BUMPER BAR LH
*9	REAR BUMPER BAR RH	*10	REAR BUMPER LOWER COVER
*11	REFLEX REFLECTOR ASSEMBLY LH	*12	REFLEX REFLECTOR ASSEMBLY RH
*13	OUTSIDE MOULDING RETAINER	-	-
•	Non-reusable part	-	-
