Removal [10/2018 - 07/2022]: Procedure
- PRECAUTION NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to INITIALIZATION [10/2018 - 07/2022]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for Gasoline Model:
Refer to REMOVAL [10/2018 - 07/2022]
- for HV Model:
Refer to REMOVAL [10/2018 - 07/2022]
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2018 - 07/2022]
- for Gasoline Model:
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 5
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 6
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 9
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 28 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 28 [10/2020 - 07/2022]
- REMOVE REAR UNDER SIDE COVER RH (for HV Model)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 30 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 30 [10/2020 - 07/2022]
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 8
- REMOVE REAR PILLAR COVER RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 34 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 34 [10/2020 - 07/2022]
- REMOVE REAR SEAT SIDE GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 36 [10/2018 - 10/2020] , or refer to PROCEDURE - Step 36 [10/2020 - 07/2022]

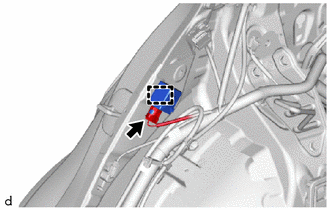

- REMOVE NO. 2 CLEARANCE WARNING BUZZER
