Components [07/2022 - ]

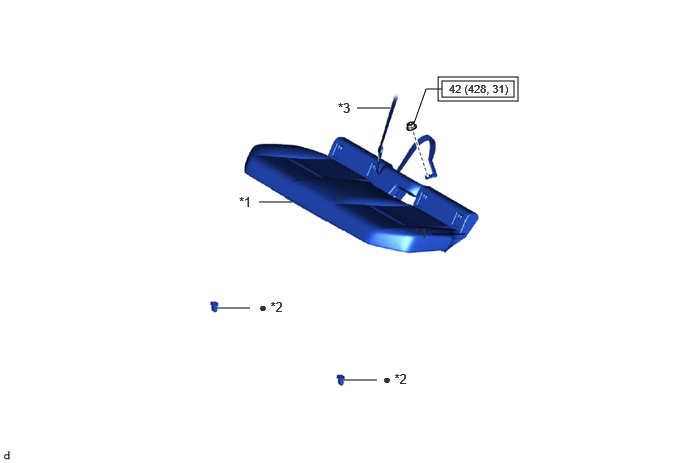

Fig 1: Clearing Warning Buzzer (Rear) Replacement Components With Torque Specifications (1 Of 2) [07/2022 - ]
| *1 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR CENTER SEAT OUTER BELT ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

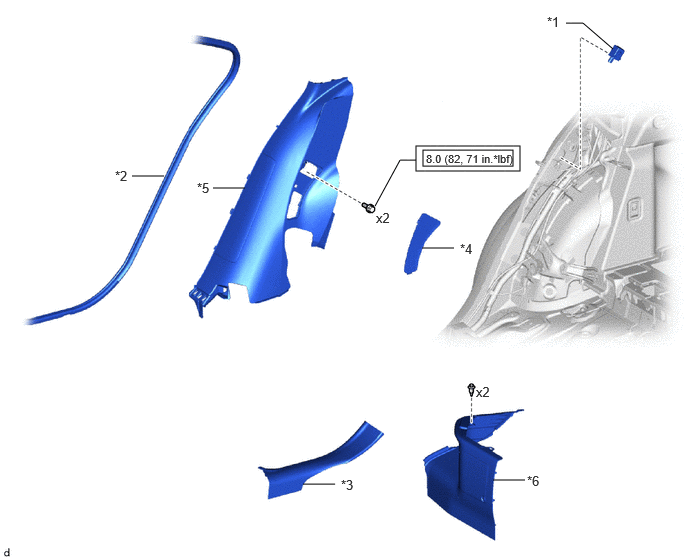

Fig 2: Clearing Warning Buzzer (Rear) Replacement Components With Torque Specifications (2 Of 2) [07/2022 - ]
| *1 | NO. 2 CLEARANCE WARNING BUZZER | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | REAR DOOR SCUFF PLATE RH | *4 | REAR PILLAR COVER RH |
| *5 | REAR SEAT SIDE GARNISH RH | *6 | REAR UNDER SIDE COVER RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
