Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [10/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 07/2022]

  2. REMOVE NO. 1 CLEARANCE WARNING BUZZER

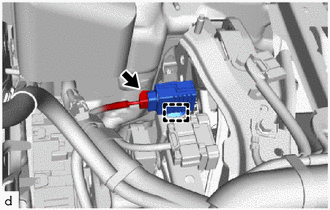

    1. Disconnect the connector.
      GTY833356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the No. 1 clearance warning buzzer.
