DTC B15C3-71: Speaker Output Short Actuator Stuck [07/2022 - ]: Wiring Diagram

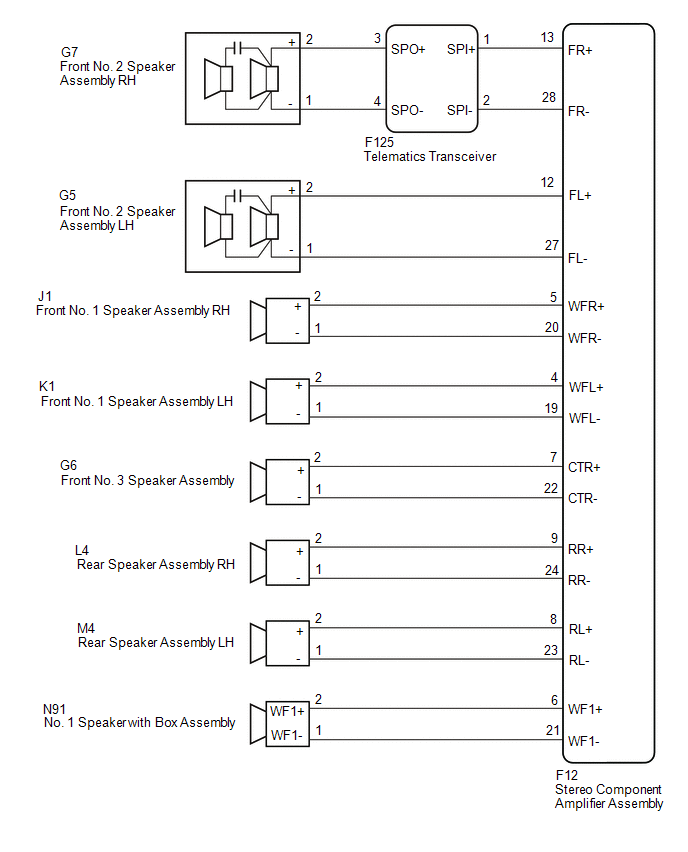

w/ Telematics Transceiver

GTY1122840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

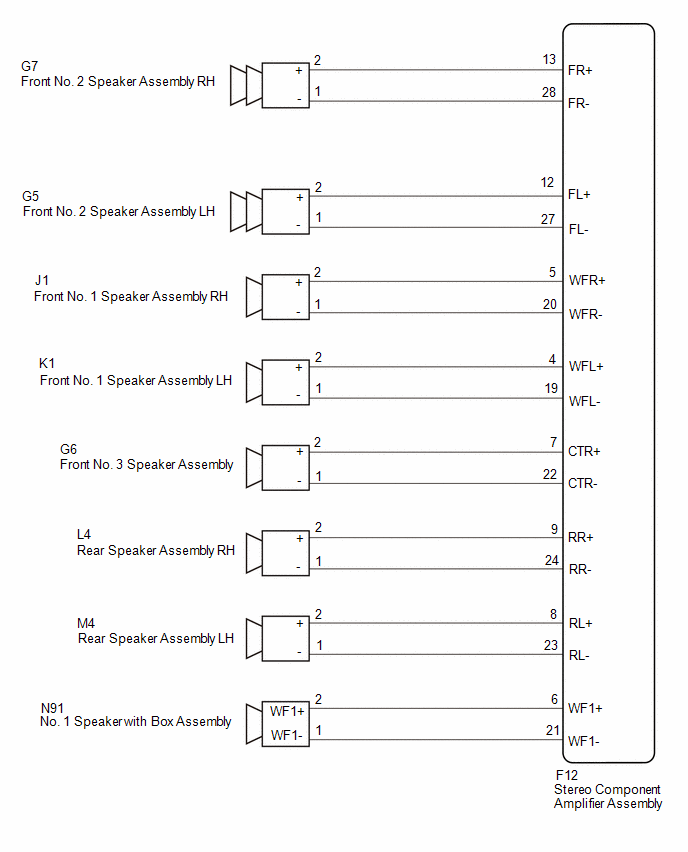

w/o Telematics Transceiver

GTY1137150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
