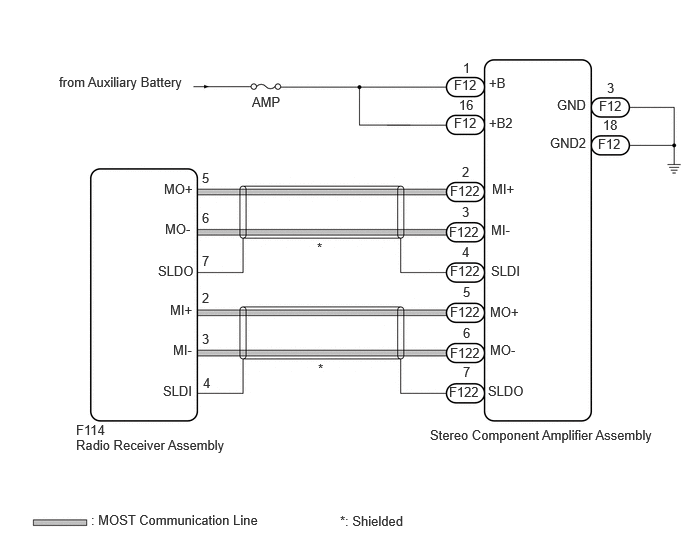

DTC B15A3-87: Stereo Component Amplifier Missing Message [07/2022 - ]: Wiring Diagram

GTY1134462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
