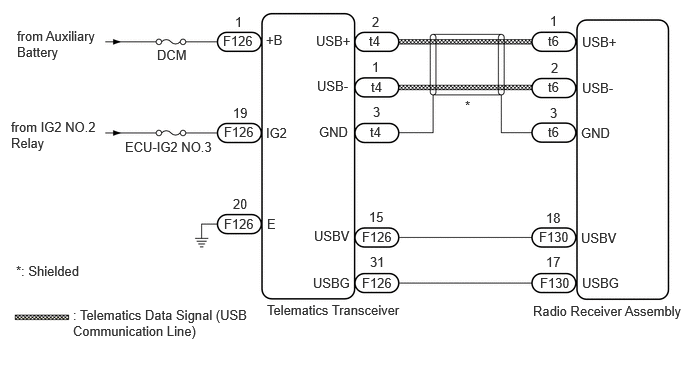

DTC B15DB-87: Telematics Transceiver Missing Message [07/2022 - ]: Wiring Diagram

GTY1122807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
