Speaker Circuit [10/2019 - 07/2022]: Wiring Diagram

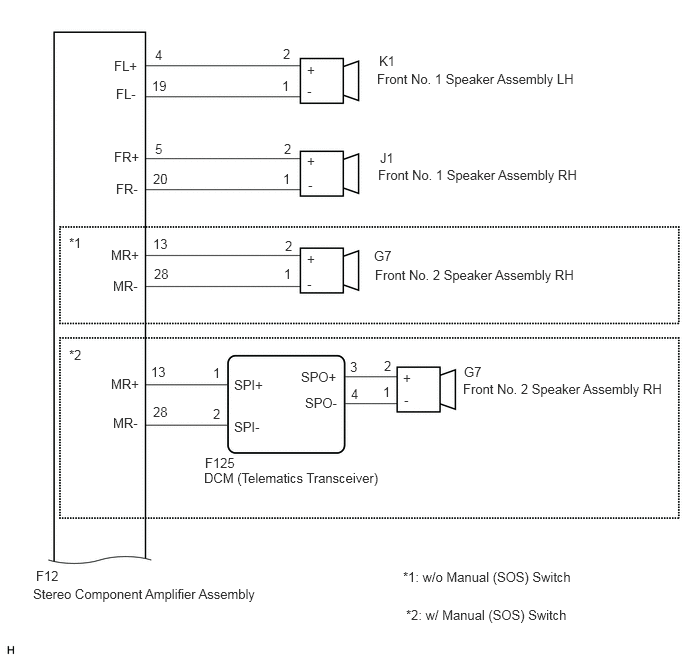

for 6 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

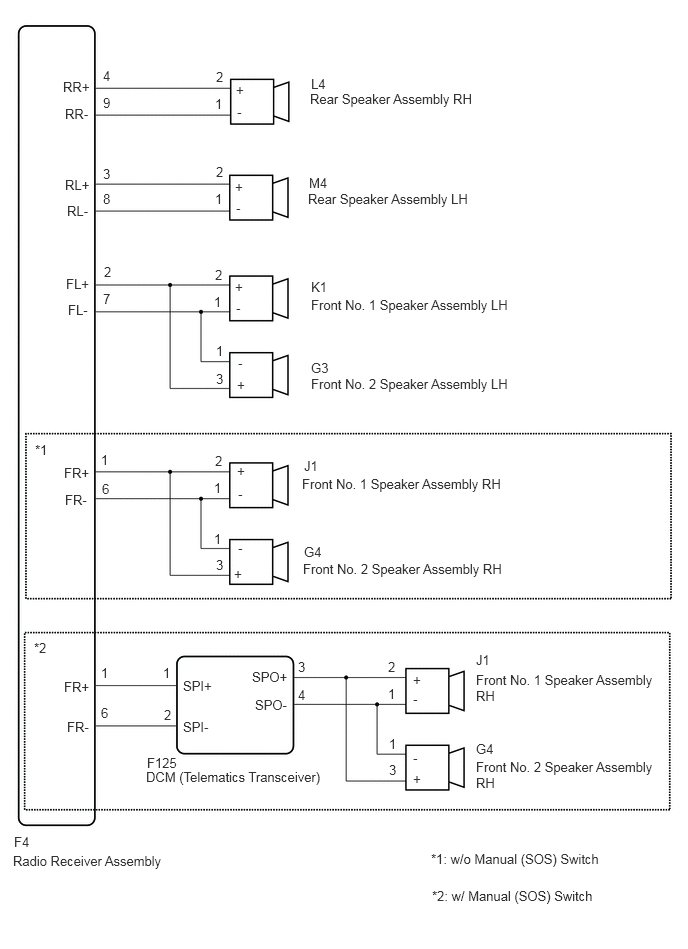

for 8 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 8 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
