Speaker Circuit [10/2018 - 10/2019]: Wiring Diagram

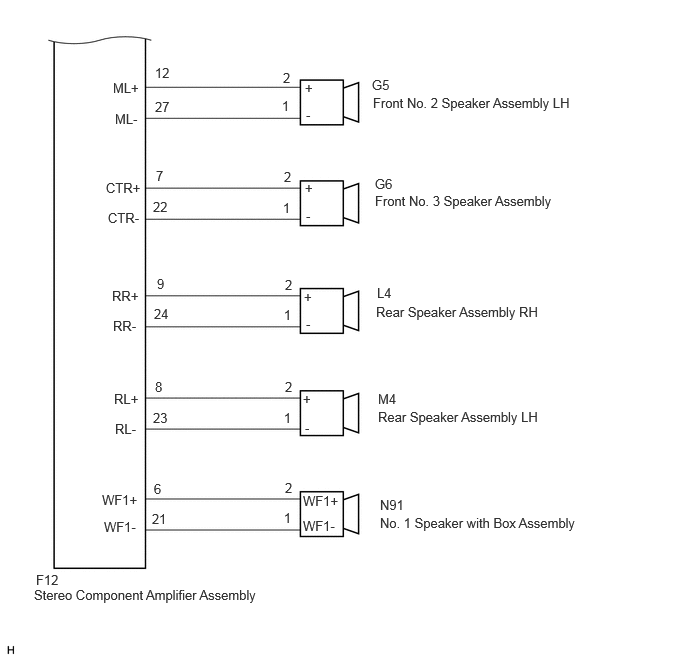

for 6 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

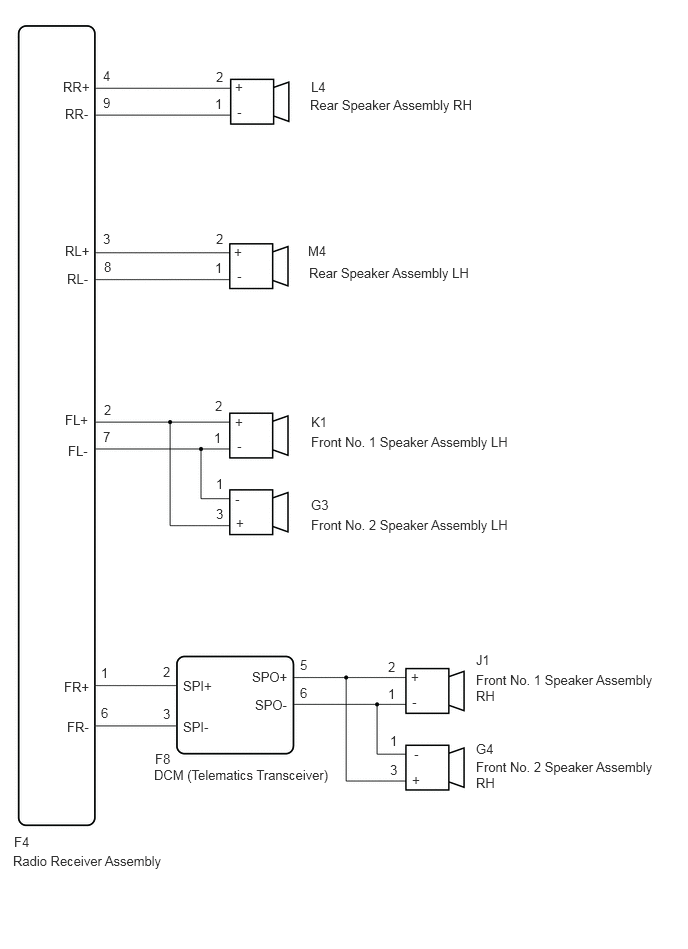

for 8 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

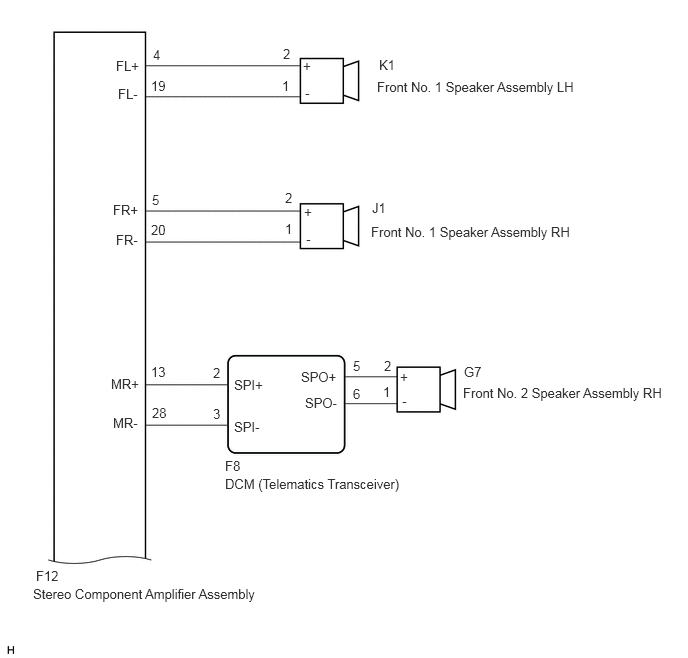

for 8 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
