Parts Location [10/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

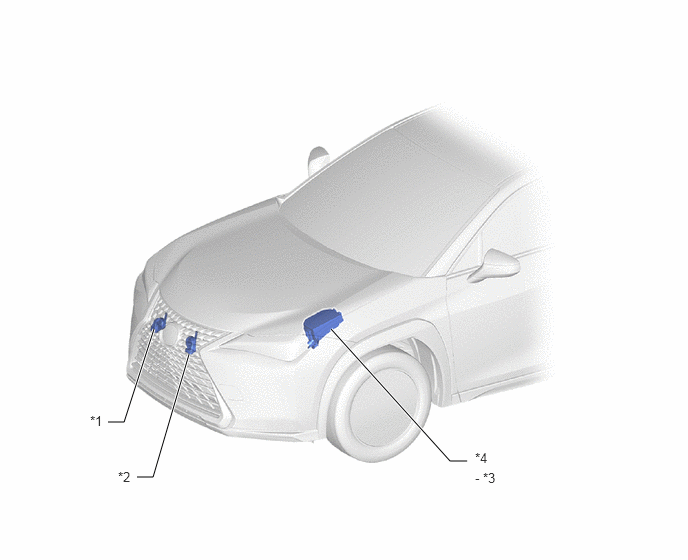

*1	HIGH PITCHED HORN ASSEMBLY	*2	LOW PITCHED HORN ASSEMBLY
*3	HORN RELAY	*4	NO. 1 ENGINE ROOM RELAY BLOCK - HORN FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

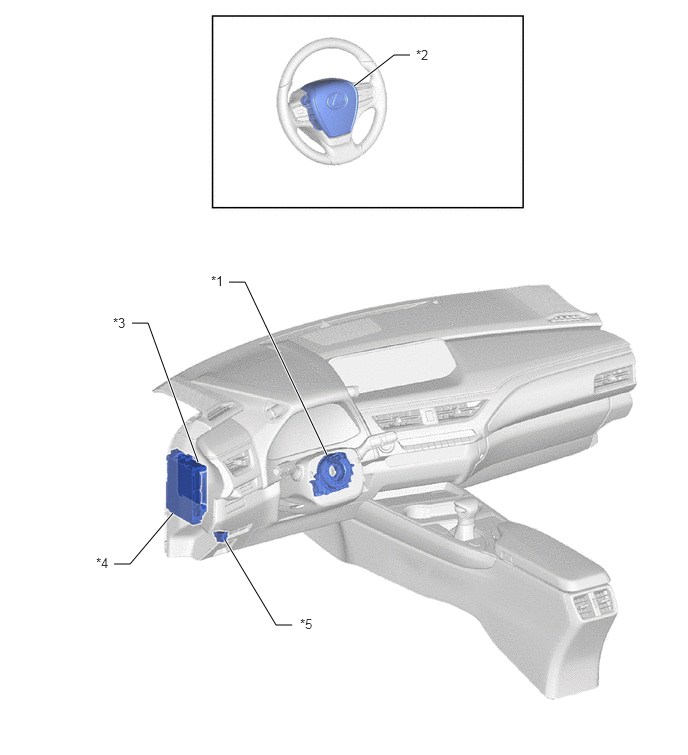

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	HORN BUTTON ASSEMBLY
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
*5	DLC3	-	-
